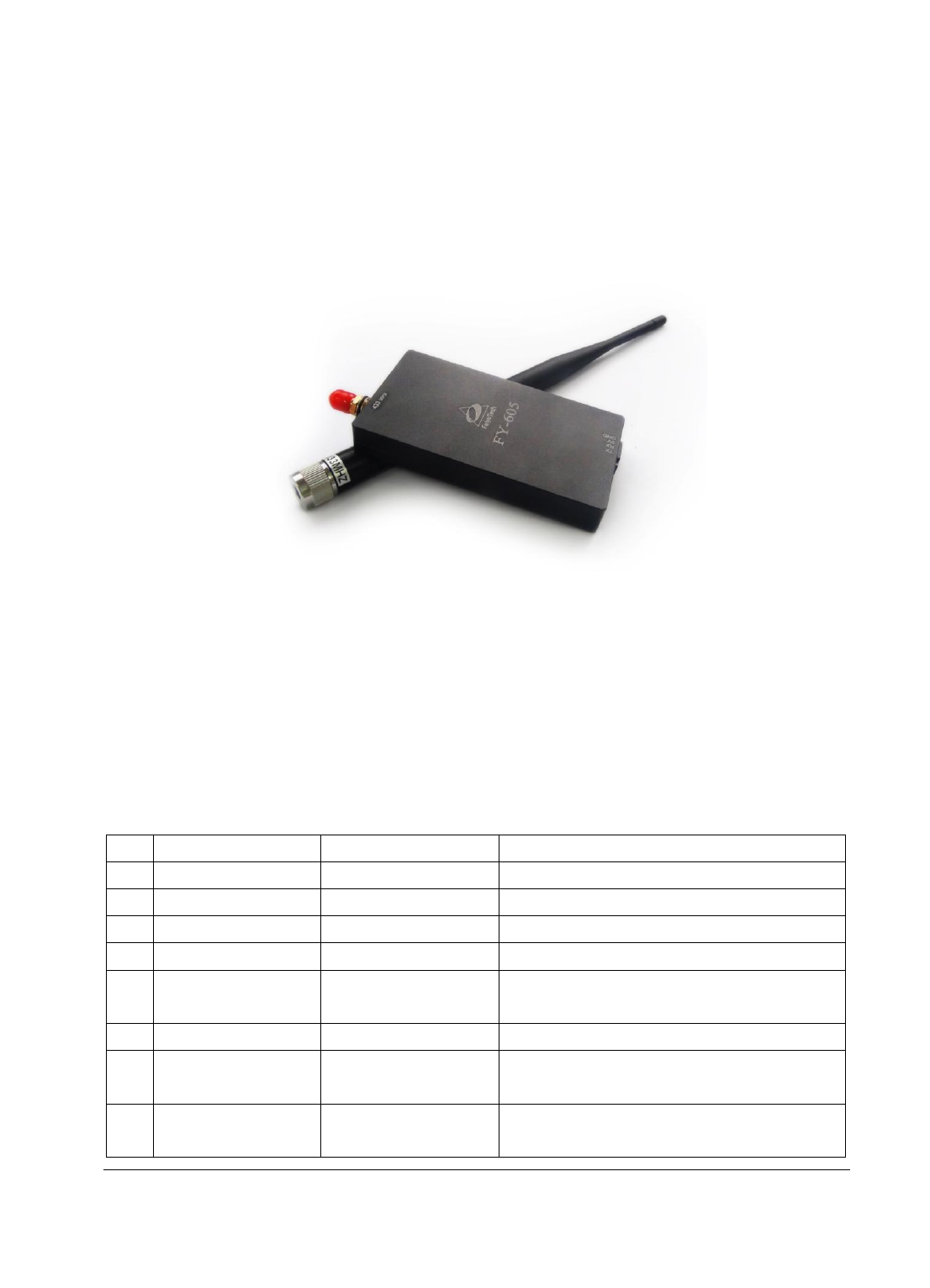

FY-605 Data radio User’s Manual Dear Customers, Thank you for purchasing the FY-605 data radio from FeiYu Tech. In order to achieve full potential and safe operation of this product, please carefully read this manual prior to installation. 1. Parameter Table Index Standard values 1 Transmission Power 2000mW 2 Receiving sensitivity -123dbm 3 Work voltage DC5V 4 Transmitting current <1.
Feiyu Tech FY-605 Data radio User’s Manual Transparent data interface is offered, which can be fit for nonstandard user protocol 9 Transparent data transmission 10 Baud rate 19200bps 11 Data buffer 512 bytes 12 Size 91mm*48mm*13 mm Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted) FY-605 provides various baud rate 1200, 2400, 4800, 9600, 19200 and 38400bps.
Feiyu Tech FY-605 Data radio User’s Manual 4、FY-605 interface definition GND LED indicator 5V GND 5V RX TX FY-605 Green-receive 433MHZ Red-transmit Data in Data out SMA antenna interface FY-605 is TTL level, interface default baud rate:19200bps Interface verify：None verification . 5、How to use the software to search the radio and change the parameters GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyudz.cn Page 3 E-mail: service@feiyu-tech.
Feiyu Tech FY-605 Data radio User’s Manual A. Connect FY-605 with the Computer and power, and choose the COM ports. B. Search the radio, when search it successfully (the software will clew it), then we can read and write the parameters. C. To change parameters, you can choose the parameters you want to set, re-read after set it ok, then you can know whether the parameters is you want. The default COM and RF baud rate is 19200bps.
Feiyu Tech FY-605 Data radio User’s Manual 7、Transmitting from A Module, received by B module When transmitting data, the user should consider the time delay, in order to ensure the reliability of wireless communication; we joined the FEC (wrong before) and other coding rules.
Feiyu Tech FY-605 Data radio User’s Manual B. All the modules with the same RF baud rate. C. Connect the power supply and interface well. 9、Lamp description of normal working The module has a two-color work lights; the red lamp glitters twice when connect the power supply, the red lamp glitters when transmitting data, and the green lamp glitters when receiving data. ——END—— Note: We reserve the right to change this manual at any time! And the newest edition will be shown on our website www.feiyudz.cn.
