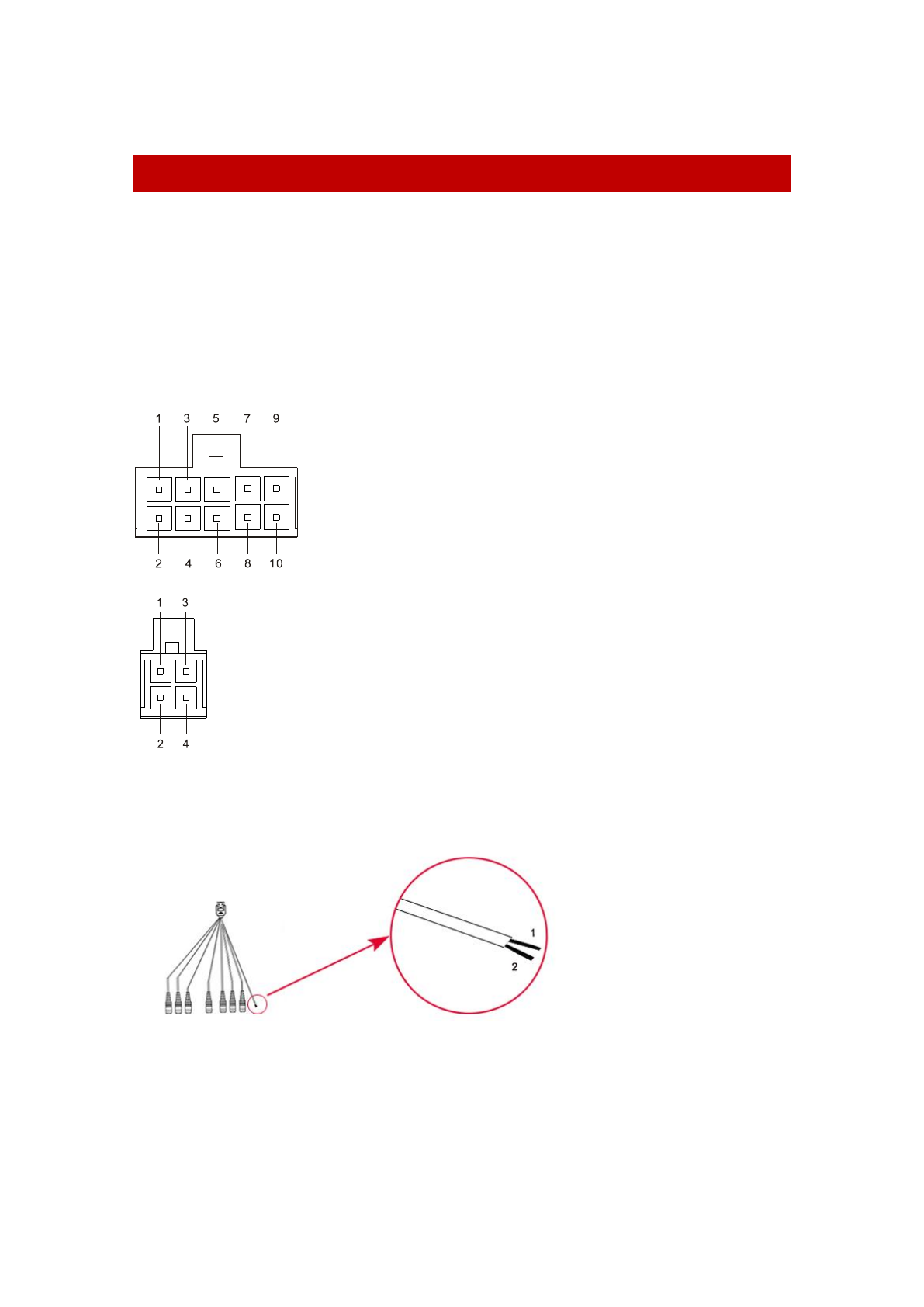

PIN ASSIGNMENT
Preface: Please observe the correct pin assignment. PIN1, PIN2, ..., according following
graphs. Please keep in mind: this is the side of the mainboard, NOT the cable PIN assignment
POWER:
8-36V DC-IN (5.5mm/2.5mm) INSIDE POLARIZATION +
Outer Dimension Screwable Lock:
SERIAL:
1: +5V 3: RX
2: GND 4: XT
VGA, HDMI, USB-B, EAR-In: Standard connectors
VIDEO:
1: AUDIO_IN_R 3: AV1 5: AV2 7: Pr+ 9: Y+
2: AUDIO_IN_L 4:GND 6: CarControl 8: GND 10: Pb+
VIDEO:
1: GND
2: CarControl
