Design Kit – 5.8GHz Wideband FM Receiver Module
Doc No :

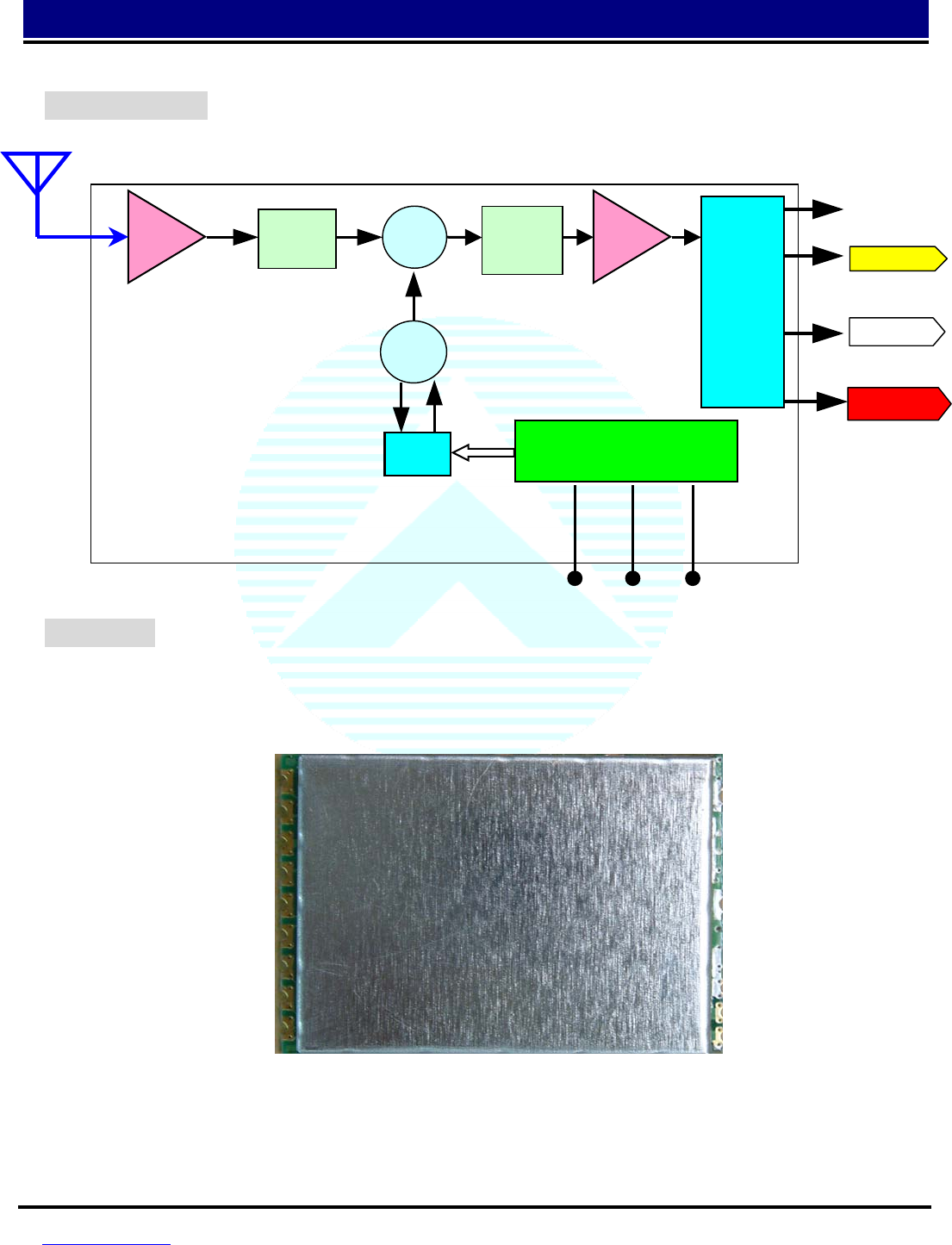

4. Function block:
5. PIN define
AWM660RX 外觀實體圖:
Digital Control CKT
CH1:5740 MHz, Lo=5260 MHz
CH2:5760 MHz, Lo=5280 MHz
CH3:5780 MHz, Lo=5300 MHz
CH4:5800 MHz, Lo=5320 MHz
CH5:5820 MHz, Lo=5340 MHz
CH6:5840 MHz, Lo=5360 MHz
CH7:5860 MHz, Lo=5380 MHz
N
ote: Lo=RF-IF
FM
PLL
Demod.
Mixer
LNA
LPF
CH1 CH2
CH3
PLL
Channel Select
IF Amp
SAW
Filte
r
VCO
Video
A
udio/R
Audio/L
RSSI
Zo=50 oh
m
5.725 GHz～5.875 GHz
Zo = 50 ohm
Pin 01
Pin 02
Pin 03
Pin 04
Pin 05
Pin 06
Pin 07
Pin 08
Pin 09
VCC
Bypass
GND
Audio_R
Audio_L
Video
B2
B1
B0
GND
RF IN
GND
Pin 10
Pin 11
Pin 12
