Section 2: Installation
Base Assembly, Continued
5. Insert a cotter pin (#17) through the
Axle Rod.
• Using needle nose pliers, bend
back both haves of the cotter pin
to secure the wheel assembly.
6. Repeat steps two through four (2-4)
for the second axle.
7. Center the axles in the base, and then
insert the four
locking screws (#15)
into each of the tapped holes in the
bottom of the base.
• Located directly under the axle
holes
8. Tighten the locking screws, and then
secure the Lock Nuts (#14).
9. Turn the platform over so it sets on
the wheels.

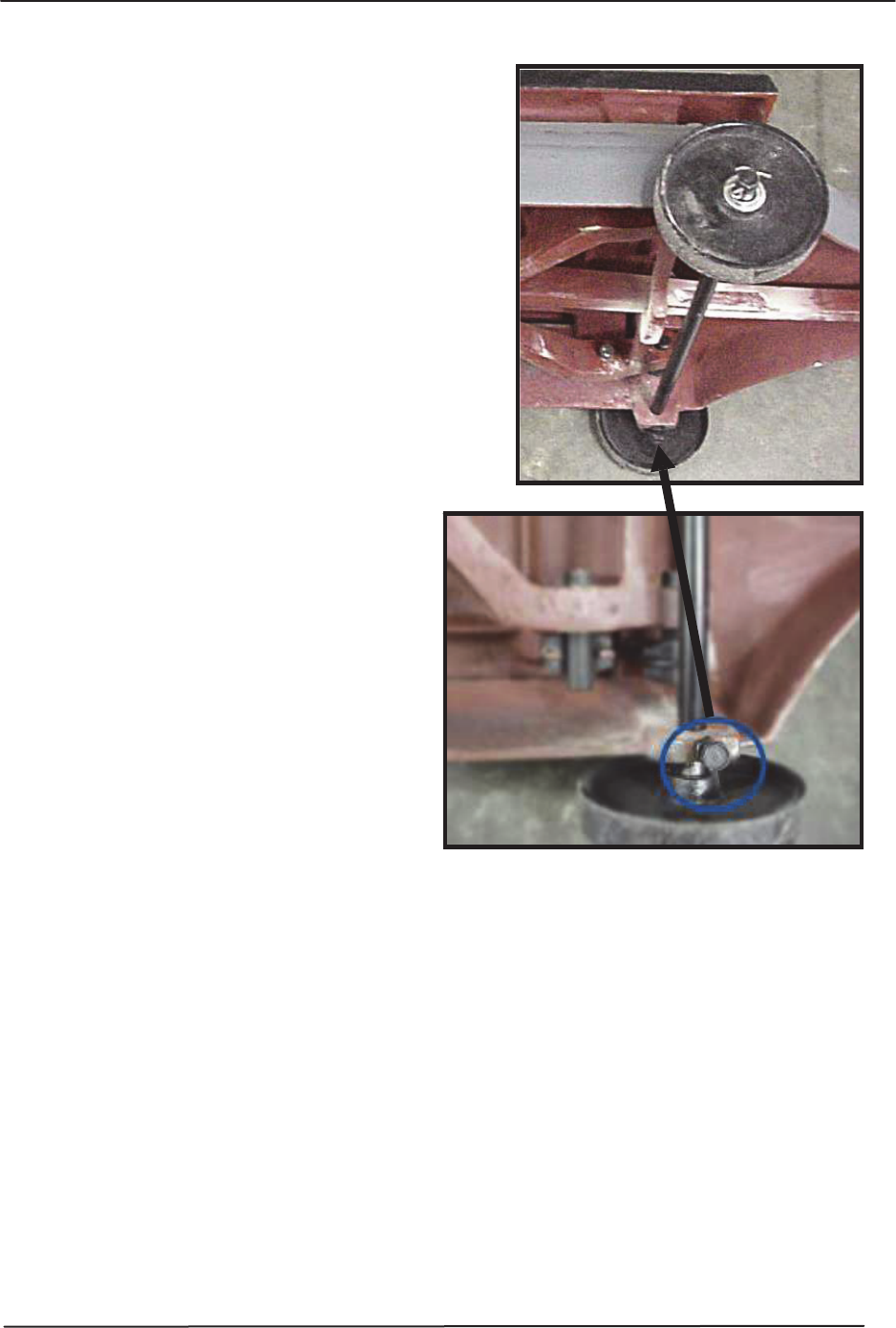

After inserting the four Cotter Pins, center the
axles, tighten the Locking Screws, and then
secure the Lock Nuts.
