Section 2: Installation
Base Assembly
NOTE: The following descriptions refer to “Key#” (#4, etc.) to describe parts. Use the
parts list and Key# in the list to identify all such parts.

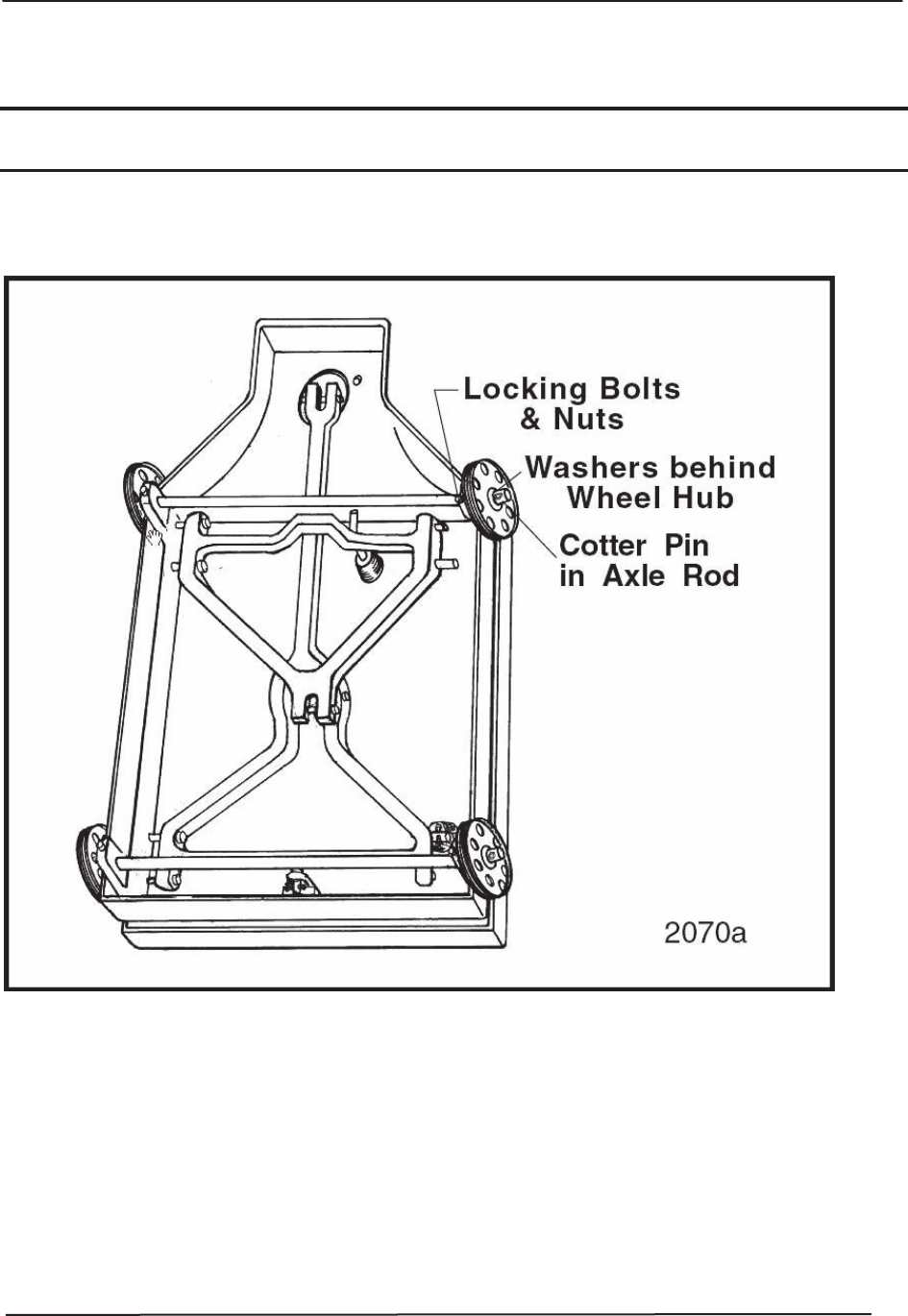

1. Place the Platform Sub Assembly on the floor upside-down, preferably on 2x4
blocks to raise it up off the floor, if possible.
2. Remove the cotter pins and washers from one side of the Axle Rod (#19).
• Axle assembly includes an affixed cotter pin (#17), a 5 ” wheel (#16), and then
a flat washer (#18).
3. Insert the Axle Rod Assembly through the two axle rod holes, side-to-side.
4. Place one flat washer (#18), then a wheel (#16) over the other end.
