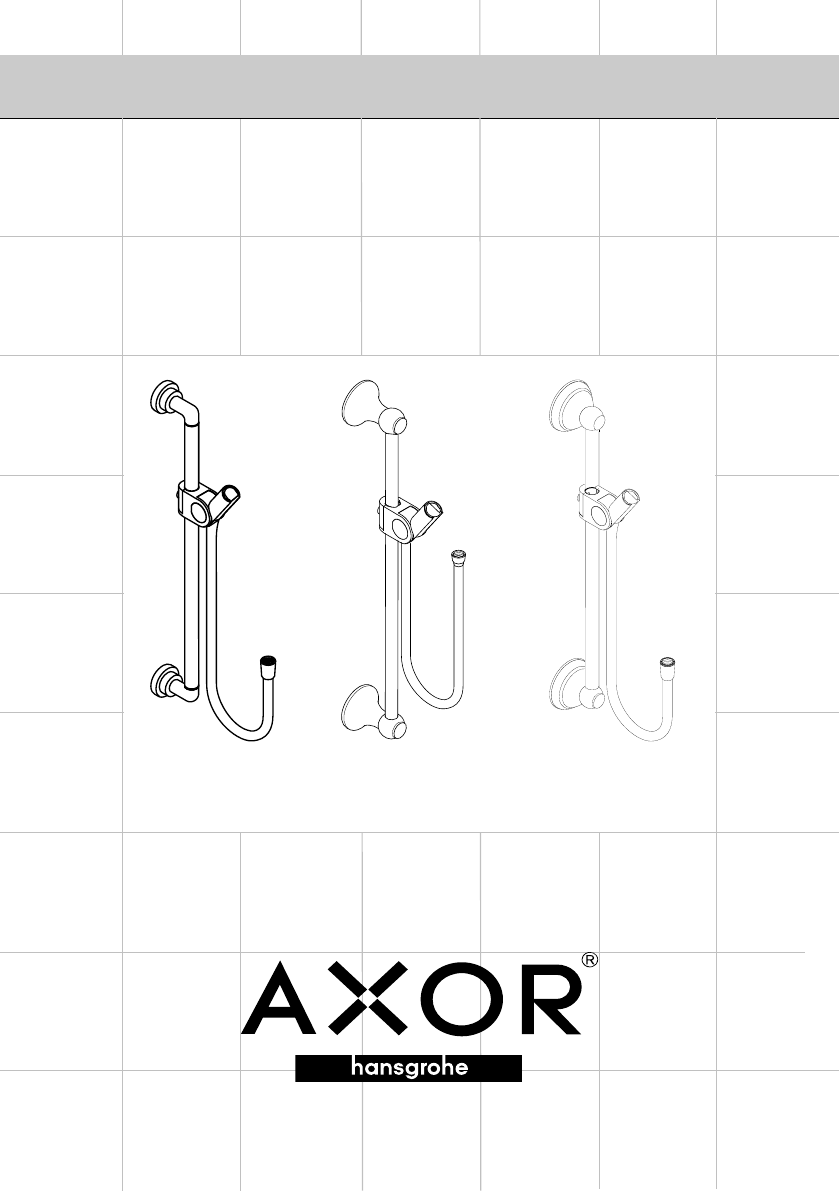

Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Installation Instructions / Warranty Citterio 27831XXX Terrano 27834XXX Carlton Phoenix 27835XXX Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Axor Citterio Wallbar Set 27831XXX Axor Terrano Wallbar Set 27834XXX Axor Carlton / Phoenix Wallbar Set 27835XXX 27831XXX 27834XXX 27835XXX This wallbar set contains the wallbar and a 63” Techniflex handshower hose. It is compatible with any Hansgrohe handshower. 2 Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Axor Citterio Wallbar Installation Mark the positions for the screw holes (1). The center of the top hole should be 36” from the center of the bottom hole. Drill the holes with a 6 mm bit suitable for the wall surface (2). Install the anchors. Seal the wall around the anchors with waterproof sealant. Install the mounting pieces with the screws and metal washers. Place the wallbar over the mounting pieces (1).
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Axor Terrano / Carlton / Phoenix Wallbar Installation Mark the positions of the screw holes, using the holes on the mounting pieces as a template. When positioning the support element on the wall, make sure that the notch is at the bottom. Put the support elements in a safe place. Drill the holes using a 6mm bit suitable for the wall surface. 4 Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Install the anchors. Seal the wall around the anchors with waterproof sealant. Screw the support elements to the wall with the screws. Note: the gold deco-rings shown in the diagram are included only with Carlton model 27835090 (chrome with gold accents). They are not used with other models. Deco ring Position the wallbar over the support elements. Press the bar firmly into place.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Slider Adjustment Vertical adjustment easier harder To adjust the resistance of the slider, use a screwdriver to turn the adjustment screw on the back of the slider. Turning the screw clockwise makes the slider harder to move, counter-clockwise makes it easier. Angle adjustment To change the resistance of the angle adjustment of the handshower holder, use a 3 mm Allen wrench to turn the adjustment screw on the bottom of the slider.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Install the handshower (not included) Remove the protective cap from the handshower. Place a black rubber hose washer in the shorter hose end connection. Screw this end to the wall supply (not included). Place the screen washer in the longer hose end connection. Screw this end of the hose to the handshower. Place the handshower and hose in the handshower holder on the slider. 7 Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Replacement Parts 27831XXX 1 6 1 2 3 4 5 6 7 mounting set slider mounting piece cylinder screw set screw wall support hose 40916000 96505XXX 97597000 97661000 97660000 97696XXX 28276XXX 1 2 3 4 5 6 mounting set support element hexagon screw pin slider hose 96179000 96341000 97661000 97546000 96505XXX 28276XXX 2 7 4 3 5 Replacement Parts 27834XXX 3 1 4 5 2 6 8 Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Replacement Parts 27835XXX 1 2 3 4 5 6 5 1 4 mounting set slider support element pin hexagon screw hose 96179000 96505XXX 96341000 97546000 97661000 28276XXX 2 3 6 9 Hansgrohe Faucets & More www.NeedPlumbingSupplies.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty.
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 THIS WARRANTY DOES NOT COVER and HANSGROHE WILL NOT PAY FOR: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. B.
Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770 360-9880 • Fax 770 360 9887 www.hansgrohe-USA.com Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890 US - Installation Instructions • Part No. 90403301 • Revised 07/2006 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.
