Parts List/Exploded View (PDF)

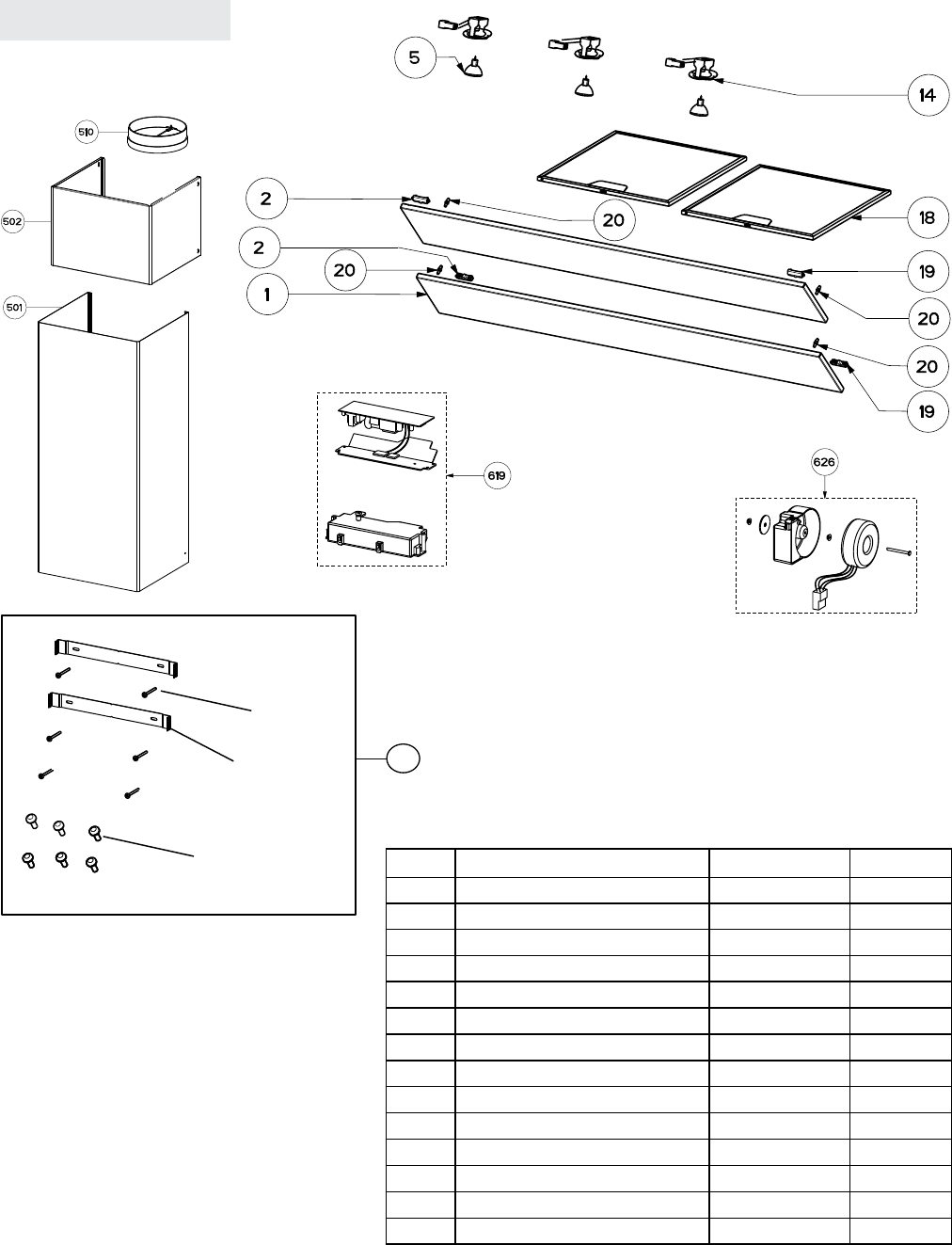

ORIZZONTE

body / chimney components

Rev. 06/10

Model Number 630006242

Key Description 36 Qty Req.

1 Front panel 133.0058.785 2

2 Left panel hinge 133.0017.597 2

5 Halgen Lamp 133.0046.418 3

14 Lampholder 133.0065.409 3

18 Grease lter 133.0017.057 2

19 Right panel hinge 133.0057.285 2

20 Hinge pin kit (2 in kit) 133.0017.004 2

50 Mounting Kit Easy Cube 133.0084.478 1

501 Lower chimney 133.0057.242 1

502 Upper chimney 133.0018.357 1

510 Damper 133.0055.994 1

619 Control Board Kit 133.0052.878 1

626 Transformer Kit 133.0053.047 1

Mounting Screws

Chimney Screws

Mounting Bracket

PAGE 1
ORIZZONTE body / chimney components Mounting Screws Mounting Bracket 50 Chimney Screws Key 1 2 5 14 18 19 20 50 501 502 510 619 626 Model Number 630006242 Description Front panel 36 133.0058.785 Qty Req. 2 Halgen Lamp 133.0046.418 3 Left panel hinge Lampholder Grease filter Right panel hinge Hinge pin kit (2 in kit) Mounting Kit Easy Cube Lower chimney Upper chimney Damper Control Board Kit Transformer Kit 133.0017.597 133.0065.409 133.0017.057 133.0057.285 133.0017.
PAGE 2
ORIZZONTE motor / control components Key 101 106 303 399 Model Number Description Control panel kit Cable connector Capacitor Motor Kit 630006242 36 133.0065.420 Qty Req. 1 133.0056.183 1 133.0016.846 133.0056.182 1 1 Rev.
