Installation instructions
Version 07/11 - Page 7
Light On/Off Button ( L )
On/Off switch for the incandescent light. Move the switch to "1"
to turn the light ON and to "0" to turn it OFF.
Blower On/Off Button ( B )
On/Off switch for the blower. Move the switch to "1" to turn the
blower ON and to "0" to turn it OFF.
Blower Speed Button ( S )
Set the blower speed control to "1" for LOW speed, "2" for
MEDIUM speed and "3" for HIGH speed.
For Best Results
Start the rangehood several minutes before cooking to develop
proper airow. Allow the unit to operate for several minutes
after cooking is complete to clear all smoke and odors from the
kitchen.
Cleaning
The metal grease lters should be cleaned frequently in hot de-
tergent solution or washed in the dishwasher. The grease lters
are removed by pressing the handle of the lter as indicated in
FIGURE 6. When replacing, make sure that the lters are properly
positioned with the handles in front and visible.
USE AND CARE INFORMATION
This rangehood system is designed to remove smoke, cooking
vapors and odors from the cooktop area.

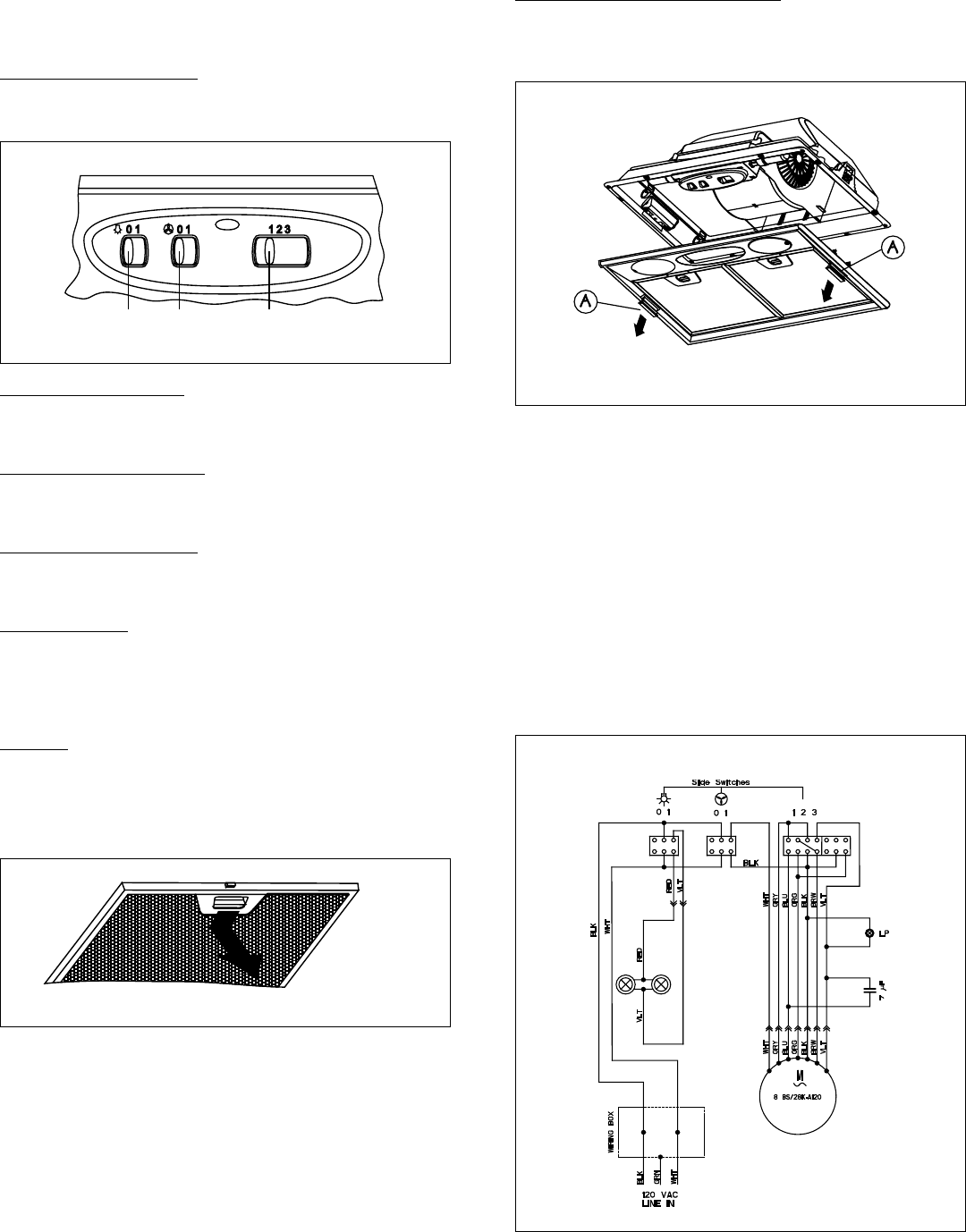

Rangehood Control Panel
The control panel is located under the canopy. The position and
function of each control button is indicated in FIGURE 5.
FIGURE 5
281_06
Clean exterior surfaces with hot soapy water. Abrasives and
scouring agents can scratch rangehood nishes and should not
be used to clean nished surfaces.
FIGURE 6
Replacing the Incandescent Lights
To replace the incandescent lights, rst remove the entire bottom
frame by pulling out the handles (A in FIGURE 7). Unscrew the
two bulbs and replace.
FIGURE 7
WIRING DIAGRAM
• This rangehood uses two 40W incandescent bulbs.
FIGURE 7
L B S
