Installation Guide

Version 11/10 - Page 8

INSTALLATION WITH IB600 INTERNAL BLOWER (600 cfm)

1. InstallthePlate B(FIGURE 8) whichcame withthe internal

blowerkit,ontopoftherangehood.Use9screwssuppliedwith

the blower kit

6. (see FIGURE 13) Removethecoverfromtheeldwiringcom-

partmentwithaphillipsscrewdriver.FeedthePowerSupplyCable

throughtheelectricalknockout.ConnectthePowerSupplyCableto

therangehoodcable.AttachtheWhiteleadofthepowersupplyto

theWhiteleadoftherangehoodwithatwist-ontypewireconnector.

Attach the Black lead of the power supply to the Black lead of the

rangehood with a twist-on type wire connector. Attach the Power

SupplyCablegroundingleadtothegreenscrewprovided.Usingthe

4holesprovidedscrewtheeldwiringcompartmenttothewallor

cabinetasdictatedbyyourPowerSupplyCablelocation(screwsnot

provided).Replacethecover.

7.Connecttheductworktothedamperandsealallconnectionswith

ducttape.Installthegreaseltersandgreaserail.(seepage11for

instructions)

8.Turnthepowersupplyon.Turnontheblowerandlight.Ifthe

rangehooddoesnotoperate,checkthatthecircuitbreakerisnot

trippedorthehousefuseblown.Iftheunitstilldoesnotoperate,

disconnect the power supply and check that the wiring connections

have been made properly.

9. CONTINUE TO PAGE 11

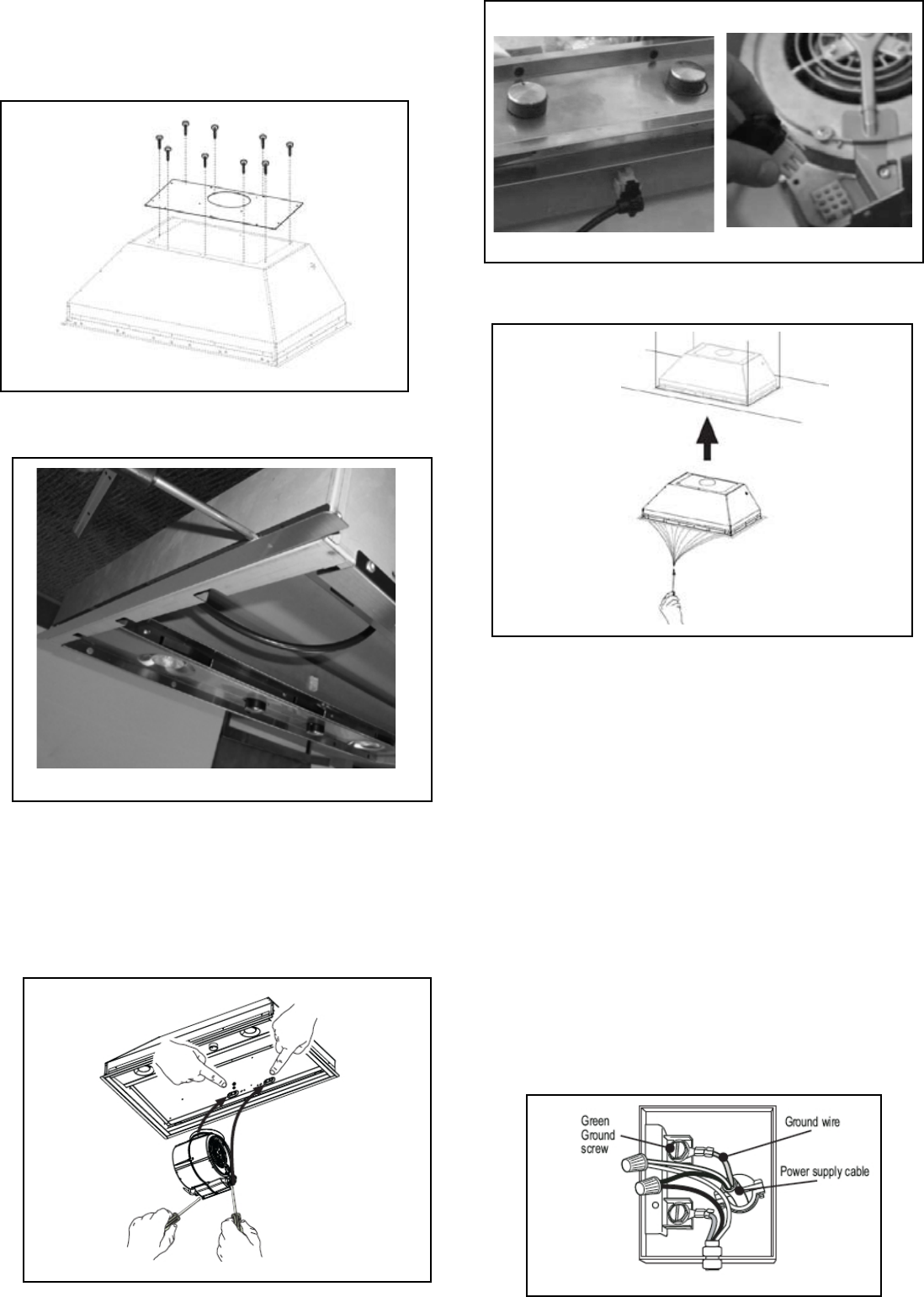

FIGURE 8

2. Installthe4sidetrimpiecestotheoutsideofthehoodusing

(16)part9bscrews,seethesiderailinstallationin(FIGURE9).

FIGURE 9

5. Attachthehoodtothecabinetusing(12)9c.screwstothe

cabinet.FIGURE12

FIGURE 12

FIGURE 10

3. Installthemotorkitintothehoodusingthe2screwssupplied

withthemotorkitintothebackofthehood.(FIGURE10)

4.Connectthewirethatcomeswiththemotorkitfromtheside

of the motor to the connection on the inside of the light panel in

thehood.The9holeendofthewireisinstalledinthemotor,the

6holeendisconnectedtothelightpanel(FIGURE11)

FIGURE 11

FIGURE 13
