Installation Guide

Version 11/10 - Page 10

INSTALLATION WITH REMOTE BLOWER (RB900 / RB1200)

NOTE: FOLLOW THE INSTRUCTIONS INCLUDED WITH THE

REMOTE BLOWER TO INSTALL THE BLOWER ON THE

OUTSIDE OF YOUR HOME

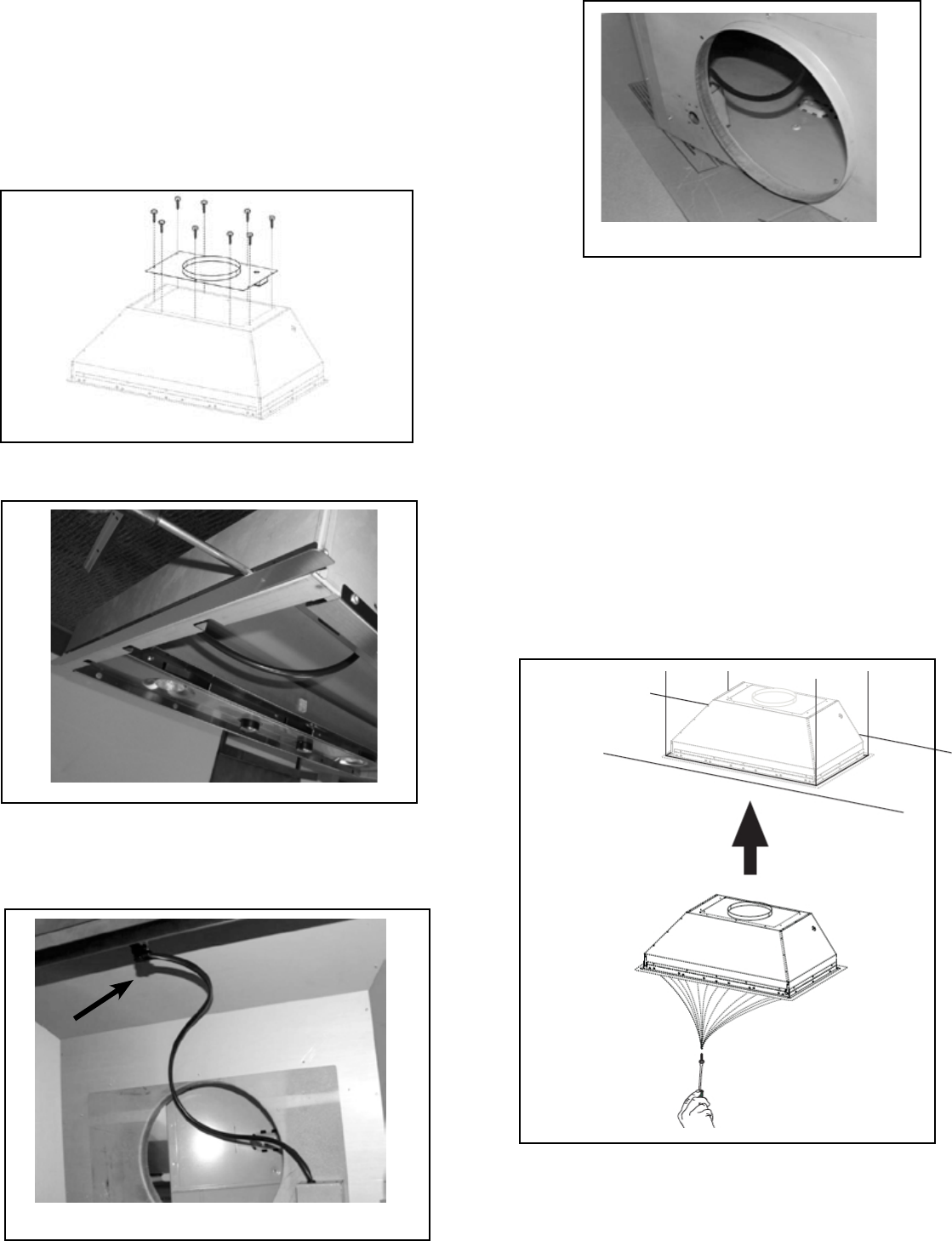

1. InstallthePlateB(FIGURE21)whichcamewiththeremote

blowerkit,ontopoftherangehood.Use9screwssuppliedwith

theblowerkit.Removetheelectricalknockoutholeontopofthe

plate.

2. Installthe4sidetrimpiecestotheoutsideofthehoodusing(16)

part9bscrews,seethesiderailinstallationin(FIGURE22).

FIGURE 23

FIGURE 24

4. Feed the remote blower cable thru the knockout hole in step 1

(FIGURE24).Connectthepowersupplycablefromtheremote

blowertothewiringboxonthetopductingplateofthehood.Use

step6onpage8andthediagramonpage8(FIGURE13)

5. Attachthehoodtothecabinetusing(12)9c.screwstothe

cabinet.FIGURE25

6.Followsteps6-9onpage8toconnectducting,wiring,and

testtheelectricalconnection.Usethewiringboxconnectedto

the inside wall of the hood which connects to the home power

supply thru the knockout on the side of the hood.

FIGURE 21

FIGURE 22

3. Connectthewirecomingoutofthewiringboxonthetopduct

platetothelightpanel6holeslotconnectoronthefrontinside

ofthehood(FIGURE23)

FIGURE 25
