Installation Guide

17
2.1
16

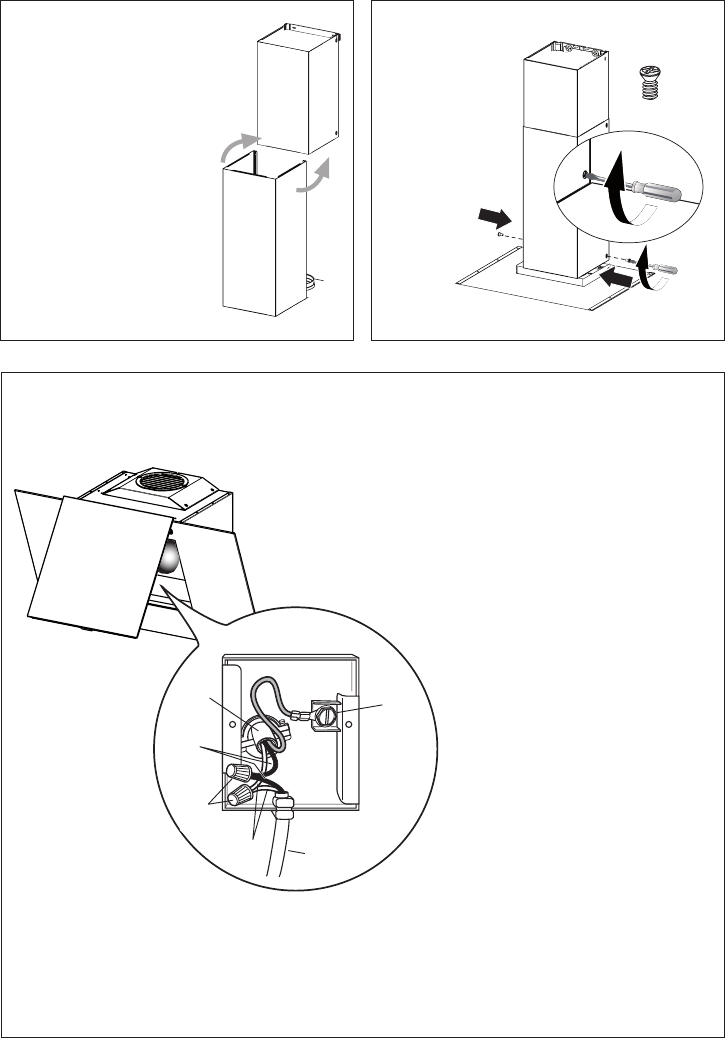

Slightly widen the two
sides of the lower section
and hook them between
the upper section and the
wall, making sure that they
are properly housed.
17
N = 2x
18
2.1
2.2
A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E. Green (or bare) ground wire from home power supply connected to green ground screw
F. Range hood power supply cable
Installation of wiring
connection
Remove the cover from the eld wiring
compartment.
DO NOT turn on the power until installa-
tion is complete!
Connect the Power Supply Cable to the
rangehood.
Connect the Green (Green and Yellow)
ground wire under the Green ground-
ing screw. Attach the White lead of the
power supply to the White lead of the
rangehood with a twist-on type wire
connector.
Attach the Black lead of the power sup-
ply to the Black lead of the rangehood
with a twist-on type wire connector.
Replace the eld wiring compartment cover
and the grease lters.
E
A
F
D
C
B
