Installation Guide

Components and Assembly Instructions

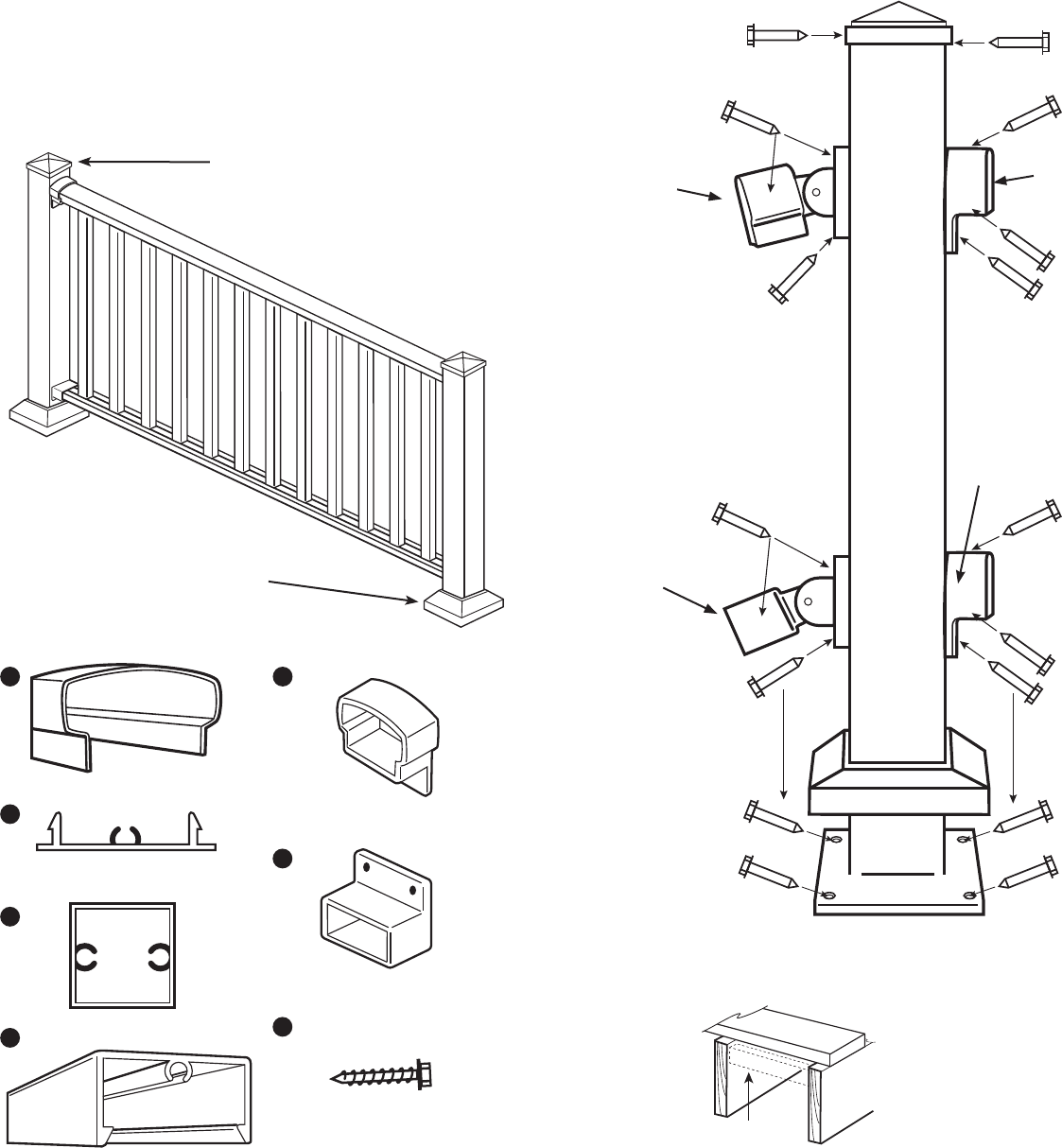

Components
A. Top Cap
B. Top Snap
C. 1" Sq. Balusters
D. Bottom Channel
E. Top Post Mount
F. Bottom Post Mount
G. 1 ½" Fasteners
3
www.maddenmetals.com
A
B
C
D
E
F
G
Optional 3 x 3 Posts
(order separately)
Optional Decorative
Base Cover
(order separately
4
For assistance call Madden Manufacturing
573-365-7085
Post Installation with Welded Base Plate
Start by ensuring that you have a solid and level mounting surface for your
post(s). Washers or galvanized/stainless metal shims (not included) may be
used to plum posts.
Post Mounts are installed with railing
sections in later steps. Mounts shown for
informational purpose only in this step.
IMPORTANT: The distance
between posts should not exceed
6 ft. when installed above ground
level(24"). Always refer to your
local building department for
building code clarification.
Note: When installing the post base into ACQ
lumber, use stainless steel bolts (not included)
IMPORTANT: Install
supporting lumber
below composite/wood
decking when surface
mounting posts to a
deck (Ex. A). Fasten
the 4" bolts through the
decking and supporting
underside lumber with
the provided tee nuts.
Stair
Adjustable
Mount
Level
Mount
Example A
Stair
Adjustable
Mount
Mount can
rotate 180º
2 x 10
