Dimensions Guide

Page 7 of 9
TRANSITION PLATES (OPTIONAL)
 Made with aircraft grade aluminum.
 Slip resistant walking surface.
48”
(nominal)
54”
(nominal)
60”
(nominal)
Length 6.73” 6.73” 6.73”
Width
47.38”
53.37”
59.37”
Weight (lbs.) 6.4 7.2 8
Anchor hole diameter 0.25” DIA.
Anchor (hole to hole)
45.37
51.37
57.38
TABLE 6

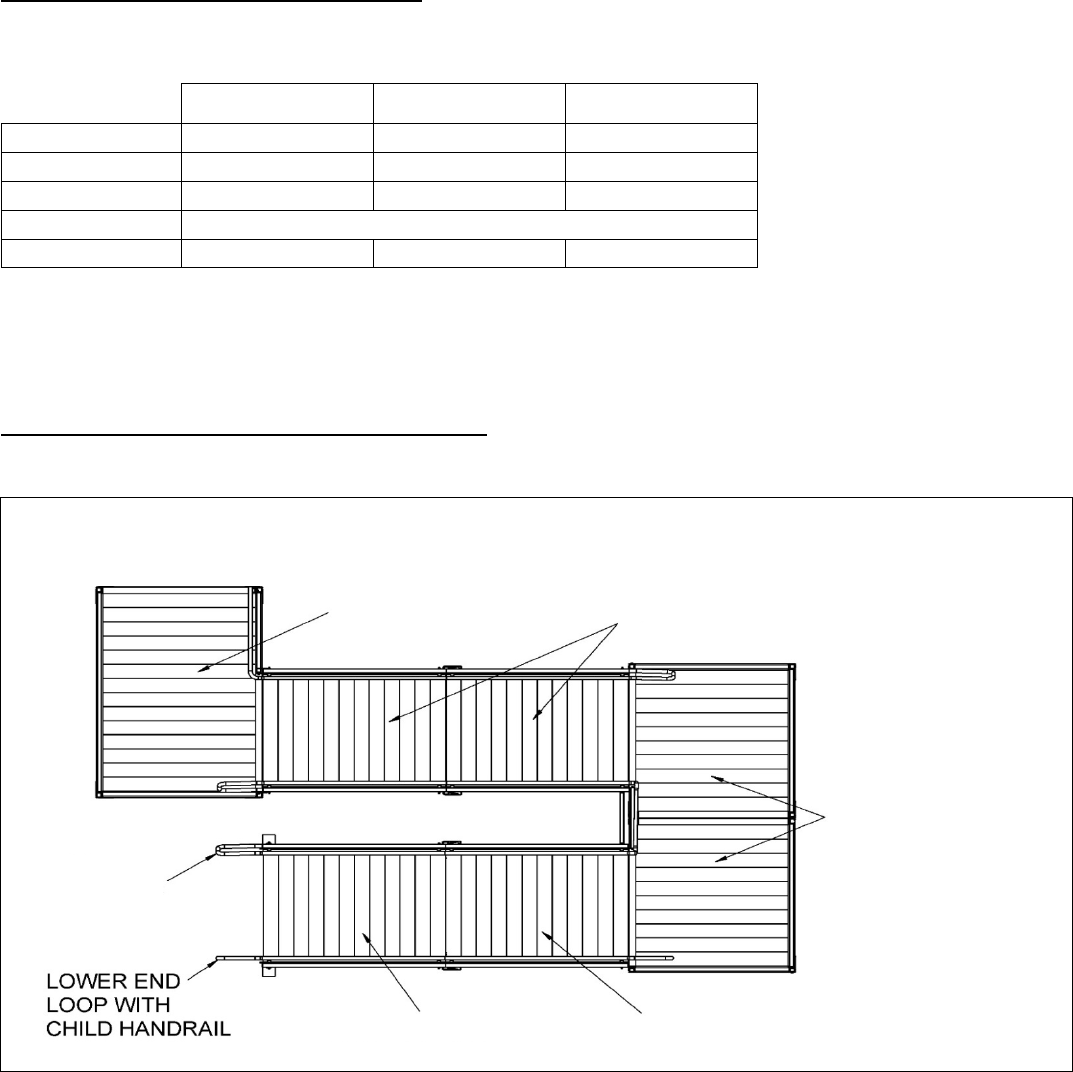

RAMP & PLATFORM/LANDING VIEWS
Plan View
FIGURE 2
LANDING/
PLATFORM
RAMP SECTIONS
RAMP SECTIONS
STARTER RAMP
PLATFORMS
SHOWN IN
TURNBACK
CONFIGURATION
LOWER
END LOOP
