MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-24

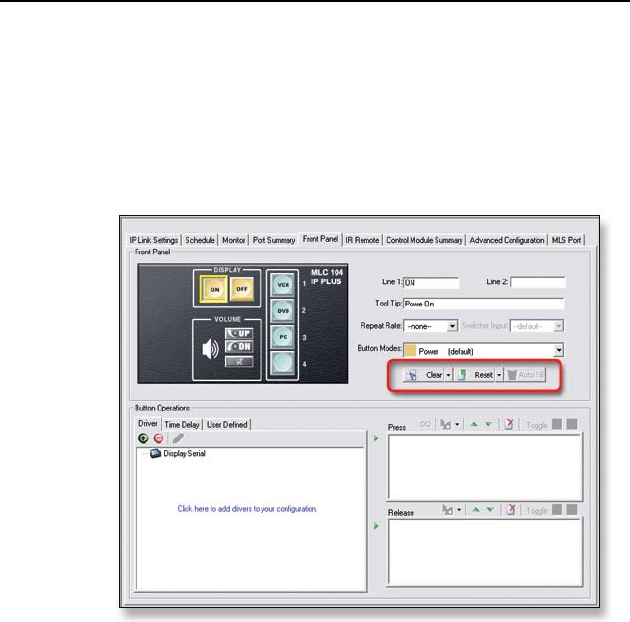

Clear, reset, and auto fill captions
Use the Clear button to clear all front panel button caption text.
Use the Reset button to delete all operations on the front panel
buttons and reset the captions to their factory default text.
The Auto Fill button is not active on the front panel tab. It is
active on the Address tab when a control module is selected in
the IP Link Tree window.
