MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-22
The Button Operations User Defined tab allows users to add
button functionality that is not predened by entering ASCII
strings or Extron Simple Instruction Set (SIS
™
) commands in
the Command eld and moving those commands to the Press
window or the Release window. The User Dened tab is only
functional with serial ports.
For a listing of ASCII codes, click View > View ASCII Chart.

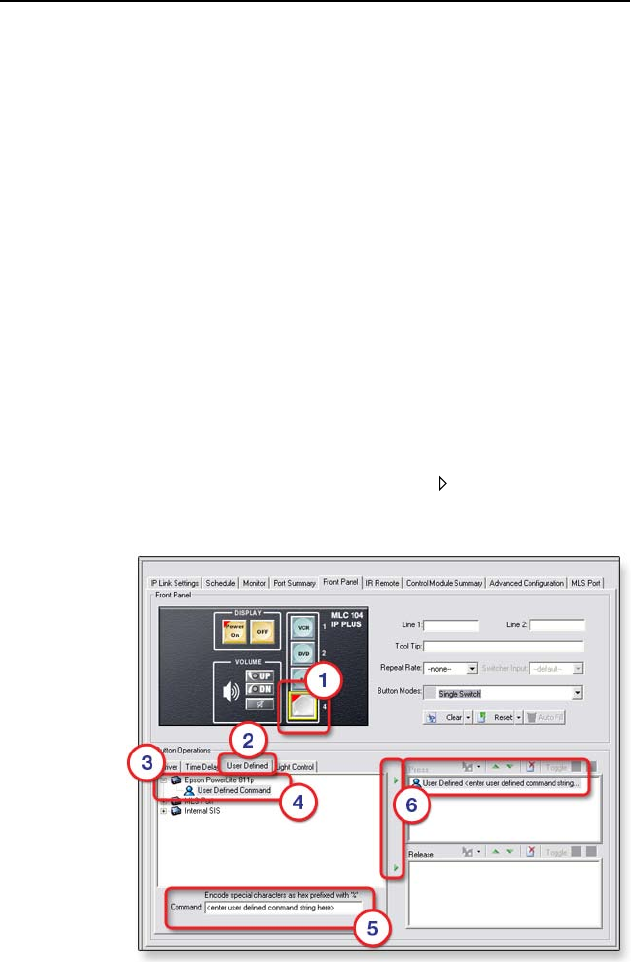

To add a user defined command:
1. Select a front panel button.
2. Click the Button Operations User Defined tab.
3. Expand a serial port.
4. Click User Defined Command.
5. Enter your desired ASCII command string in the
Command window.
6. Drag the user dened command to the Press window or
the Release window.
- or -
Use the green right arrow buttons () to move the user
dened command to the Press window or the Release
window.
