MLC 104 Plus Series • Software Setup
3-9
Step four: define the location of the new device
(IP models only)
Global Congurator allows you to keep track of the devices on
your audio/video network by creating a custom tree of folders
in which you can place and organize your audio/video devices.
This GlobalViewer Tree can be up to eight levels deep and have
multiple folders in each level.

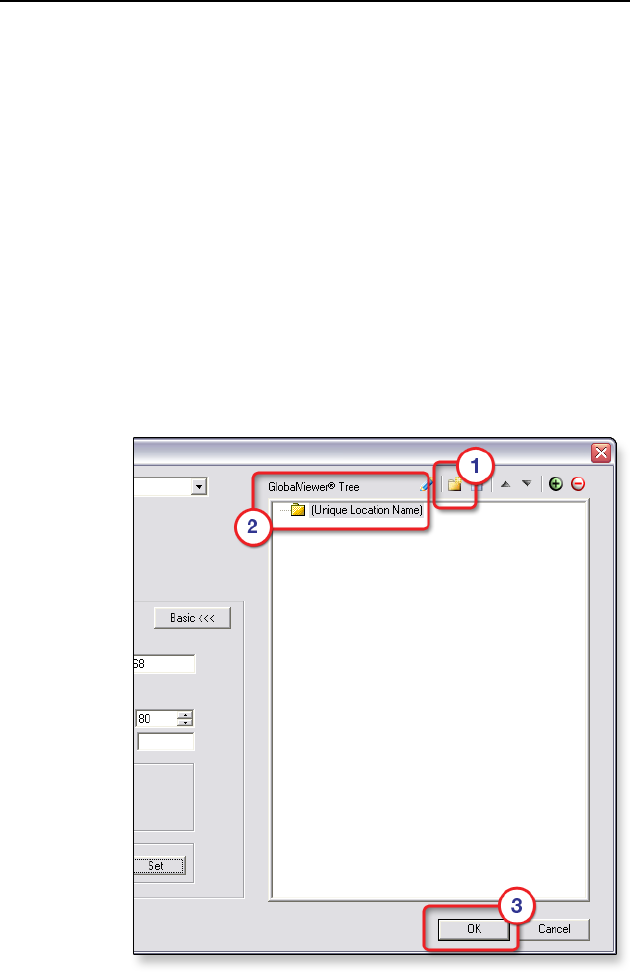

To move your newly added device to a location folder, with the
Add Device dialog box still open:
1. Click the New Location folder icon in the GlobalViewer
Tree window. You can create up to eight levels of location
folders.
2. Enter a unique location name for the new folder and keep
the new location folder selected.
3. Click OK. The new device is added to the selected location
folder and the Add Device dialog box closes.
