MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-34
Step seventeen: upload the Global Configurator
file

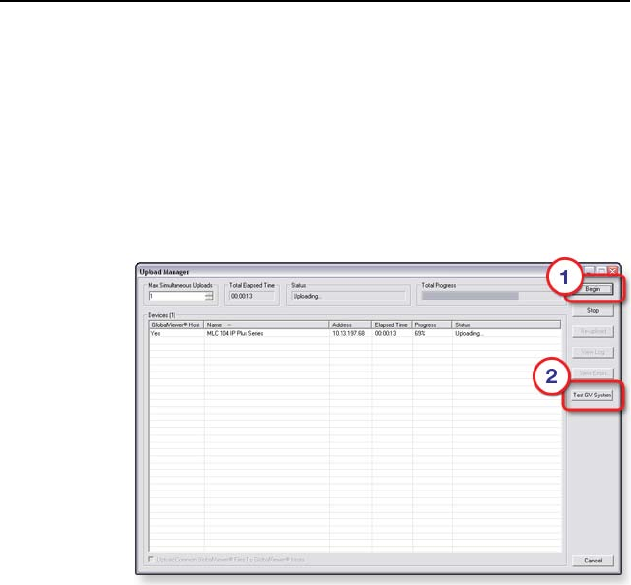

When the build process completes, the Upload dialog box
opens.
1. Click the Begin button. When the upload process
completes, the Progress and Status elds are updated to
indicate completion.
2. For IP models only, click the Test GV System button to view
the GlobalViewer host interface.
