MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-32

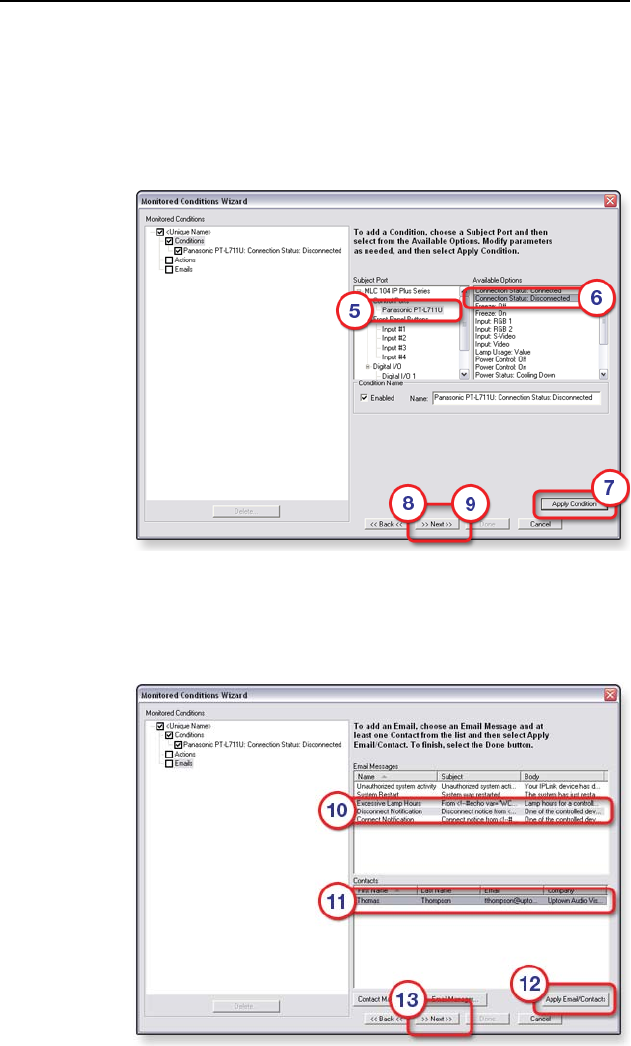

5. Select a subject port or device.
6. Select Available Options Connection Status:
Disconnected.
7. Click Apply Condition.
8. Click Next.
9. Click Next a second time to add an e-mail notication.
10. Select Email Messages Disconnect Notification.
11. Select the desired contacts.
12. Click Apply Email/Contacts.
13. Click Done.
