MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-26

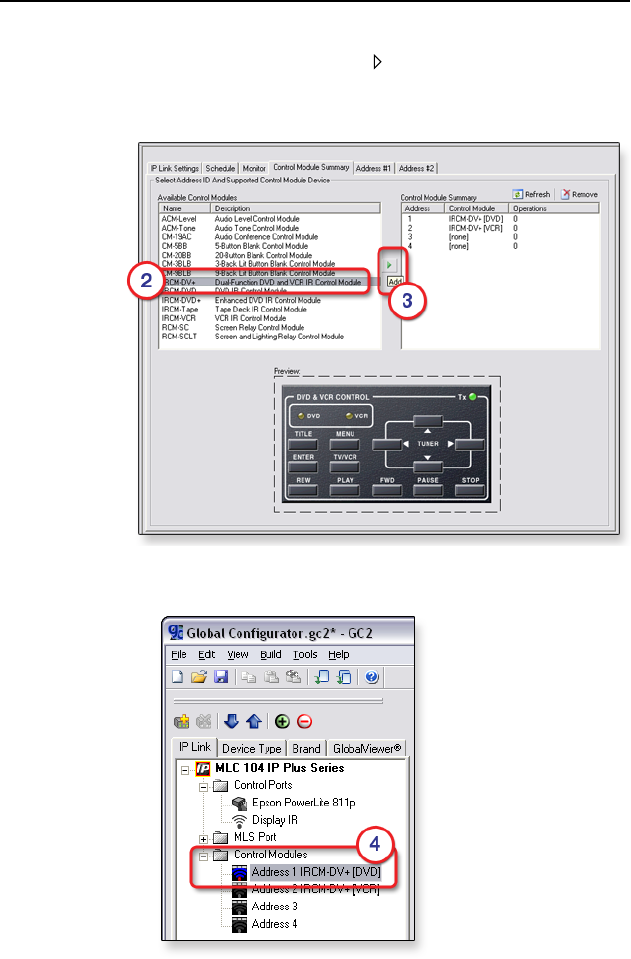

2. Select an available control module.
3. Click the Add (right arrow, ) button.
The new control module is displayed in the Control
Module Summary eld and in the IP Link Tree window.
4. Select the newly assigned control module's Address in the
IP Link Tree window.
5. Select the desired button on the control module and add
button operations as described in “Step eleven: congure
the front panel.”
