MLC 104 Plus Series • Hardware Setup
Hardware Setup, cont’d
2-4

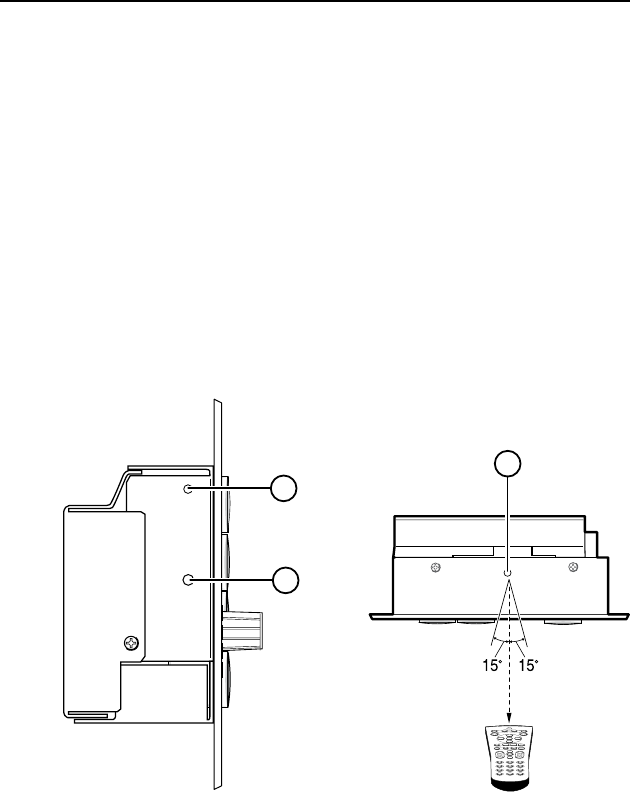

Left Side Panel and Top Panel
Controls on the left side panel and top panel are described
below.
a
Reset Button — Recessed button used to reset the device. See
the MLC 104 Plus Series Reference Manual for available reset
modes.
b
Reset LED — Green LED that ashes to indicate reset mode.
c
IR Learning Sensor — Receives and “learns” infrared
commands from other devices' remote controls to create an IR
driver. Accepts infrared signals from 30 kHz to 62 kHz.
N
Download IR Learner software from www.extron.com.
The MLC 104 Plus requires IR Learner version 1.23 or
higher.
RESET
MLC 104 Plus Series
Left Side
1
2
IR
1 2 3
4 5 6
7 8
0
9
2"–12"
(4–30 cm)
Top Panel
3
