Matrix 12800 Switchers • Web Operations
PRELIMINARY

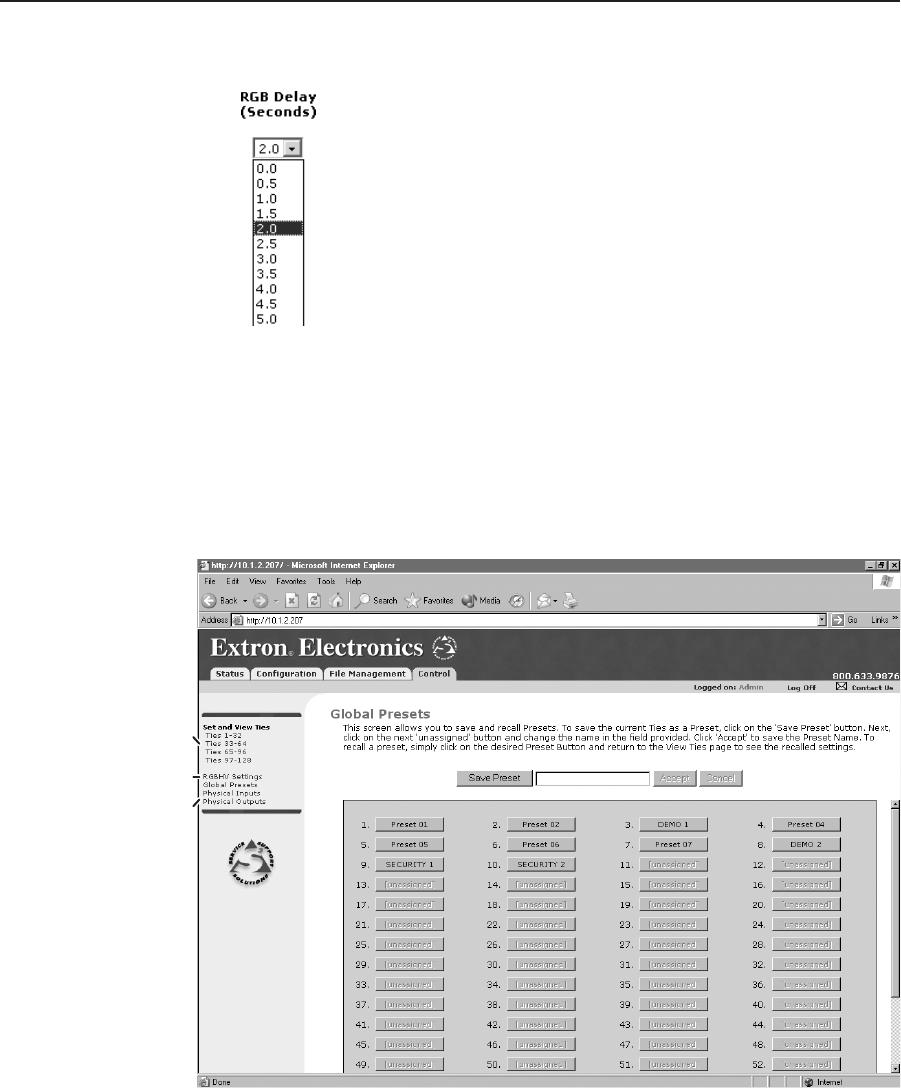

4. Click the RGB delay drop box. A drop-down scroll box appears (figure 5-15).
Figure 5-15 — RGB delay drop box
5. Click the desired RGB delay.
Global Preet page
You can save and recall global presets from the Global Presets page (figure 5-16).
Access the Global Presets page by clicking the Global Presets link on the left of the
Set and View Ties page.
Select
Set and View Ties
Select RGBHV Settings
Select Input and
Output Maps
Figure 5-16 — Global presets page
