Matrix 12800 Switchers • Web Operations
PRELIMINARY
DSVP page
To observe the Digital Sync Validation Processing (DSVP) for an input, from the
System Status page, click the DSVP link to the left of the screen (figure 5-5).
N
DSVP is only available in systems that include a sync BME.
Select
System Status
Refresh

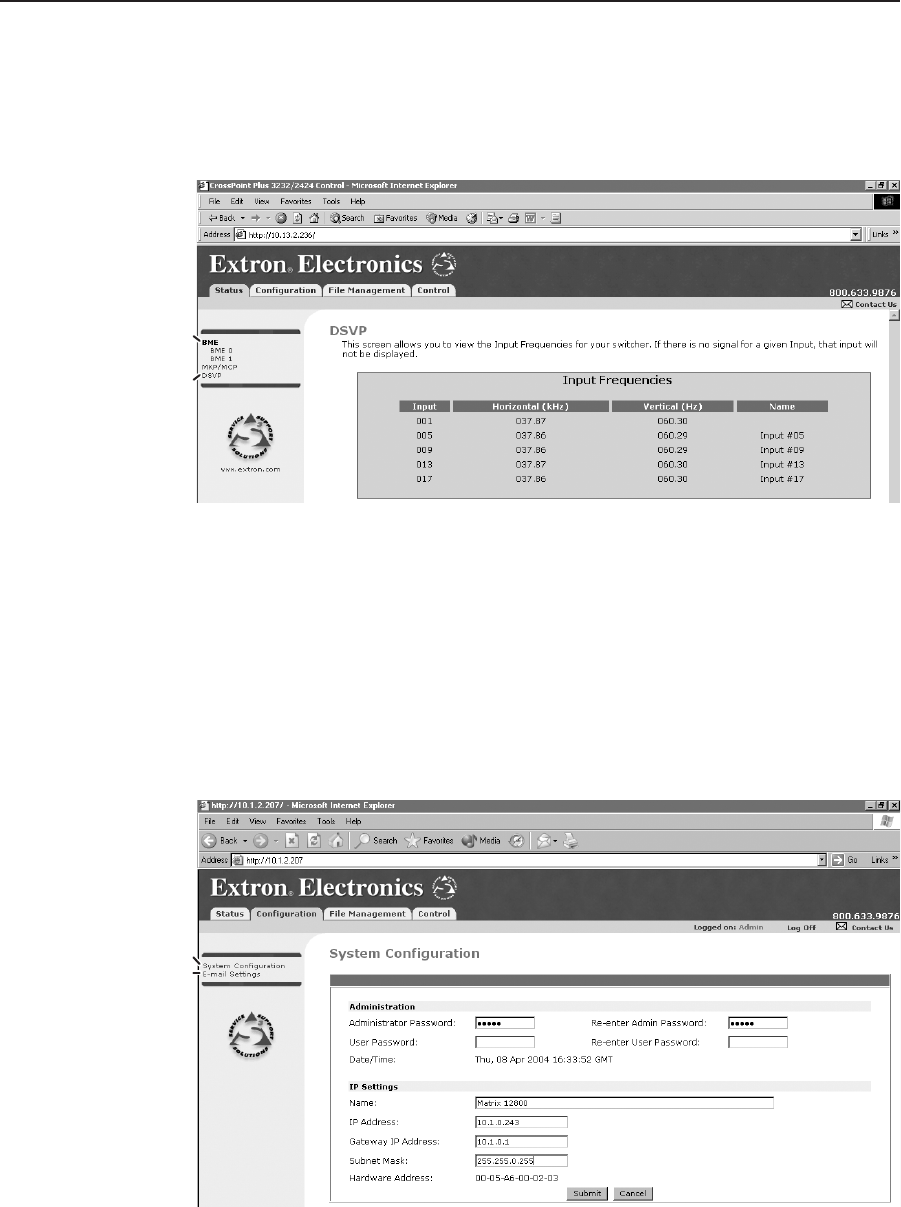

Figure 5-5 — DSVP page
Conguration Tab
Ste Conguration page
The Matrix 12800 downloads the System Configuration page (figure 5-6) when
you click the Configuration tab. The screen consists of fields in which you can
observe and edit IP administration and system settings. The e-mail settings page
can be accessed by clicking on the e-mail settings link. See appendix A, “Ethernet
Connection”, for basic information about IP addresses.
Refresh
Select e-mail Settings
Figure 5-6 — System configuration page
