Web Operation, cont’d
Matrix 12800 Switchers • Web Operations
5-4
PRELIMINARY
BME Statu page
To observe more status details for a specific BME, from the System Status page,
click the BME number, either at the top of the status column or in the brackets to the
left of the screen. The Matrix 12800 downloads the BME Status page (figure 5-3),
which provides additional information for that BME, including the size of the
matrix and the number of and status of individual input cards and output cards.
Select DSVP
Refresh BME status
MKP/MCP status

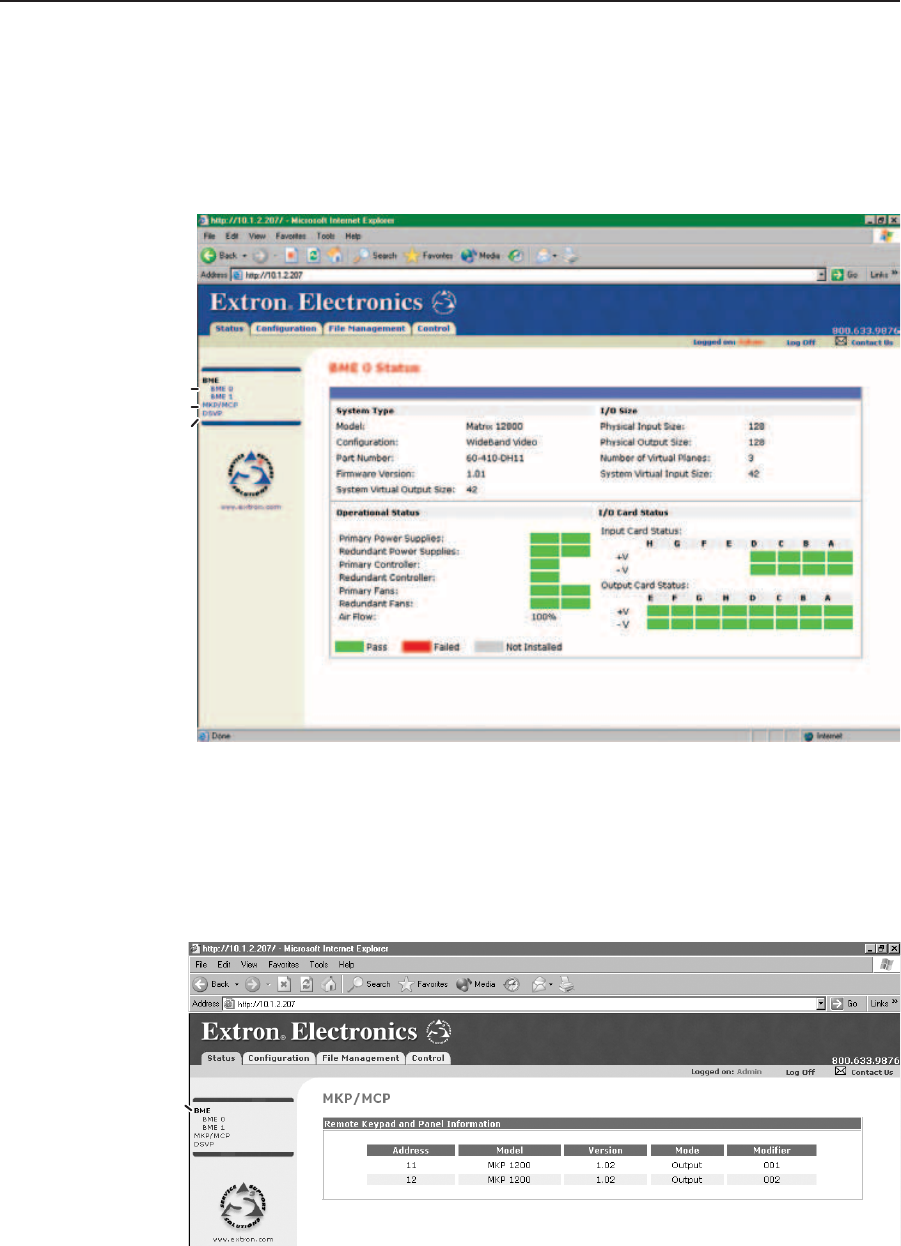

Figure 5-3 — BME Status page
MKP/MCP Statu page
To observe the connection status of remote keypads and remote control panels,
from the System Status page, click the MKP/MCP link to the left of the screen
(figure 5-4).
Select
System Status
Figure 5-4 — MKP/MCP Status page
