User guide

5. Separate the individual wires, and arrange them so that all eight wires are side by side
in the same order as the T586A or T586B standard shown at the top of the next page.
Both ends of a cable must be wired to the same standard (T586A or T586B).
Pin # TIA/EIA
T 586 A
Wire color
TIA/EIA
T 586 B
Wire color
Cable 1 Cable 2 Cable 3
1 White-green White-orange Data 0+ CEC Data 3+
2 Green Orange Data 0+ HPD Data 3+
3 White-orange White-green IDCK+ RS-232 Tx/IR+ N/C
4 Blue Blue Data 1+ DDC Clock Data 4+
5 White-blue White-blue Data 1+ +12 V Data 4+
6 Orange Green IDCK- RS-232 Rx N/C
7 White-brown White-brown Data 2+ DDC Data Data 5+
8 Brown Brown Data 2+ Ground Data 5+

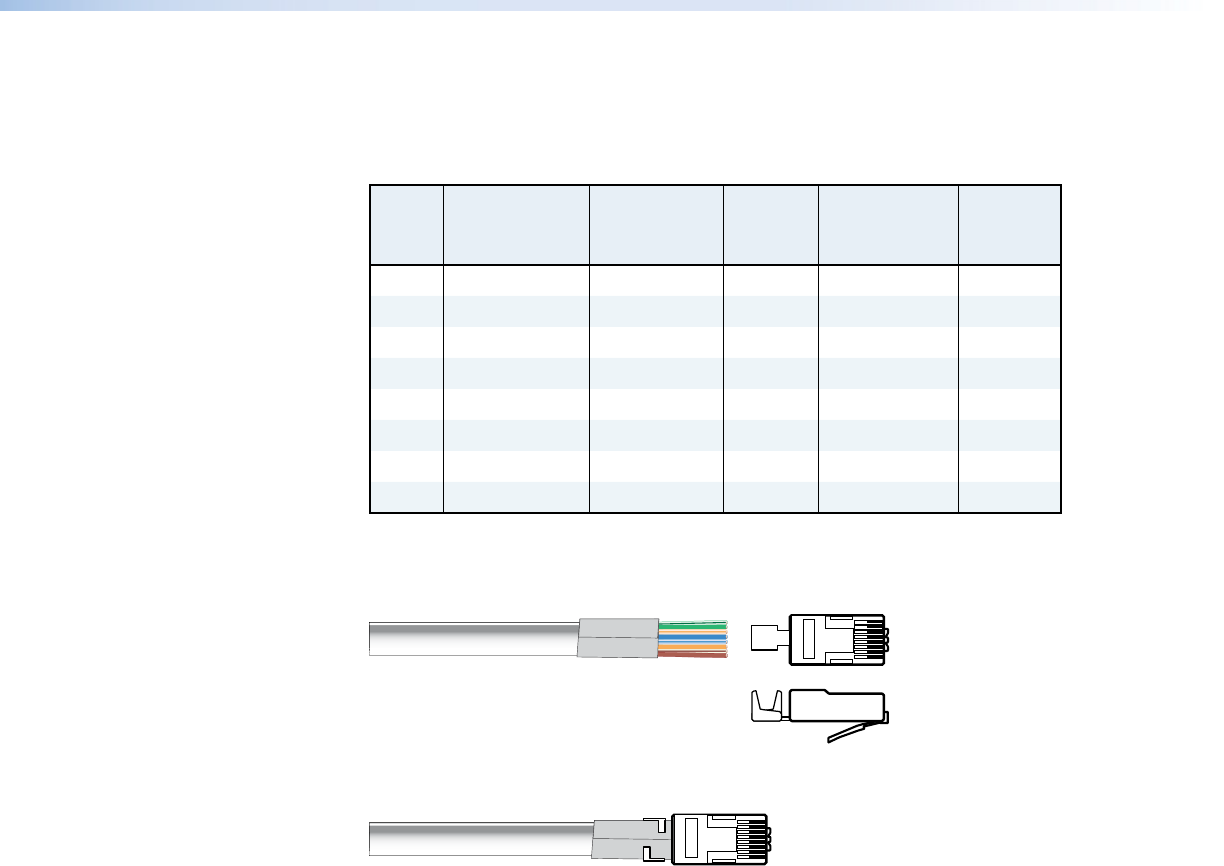

6. Feed the wires into the RJ-45 connector.
12345678
Line up wires per chart,
then insert into RJ-45
connector.
7. Crimp the cable in the normal manner (see the figure below), folding the tangs of the
connector over the shielded tape.
Crimped Connector
DVI DL 201 Tx/Rx • Panels and Cabling 8
