5-7
MGP 464 • HTML Conguration and Control
PRELIMINARY

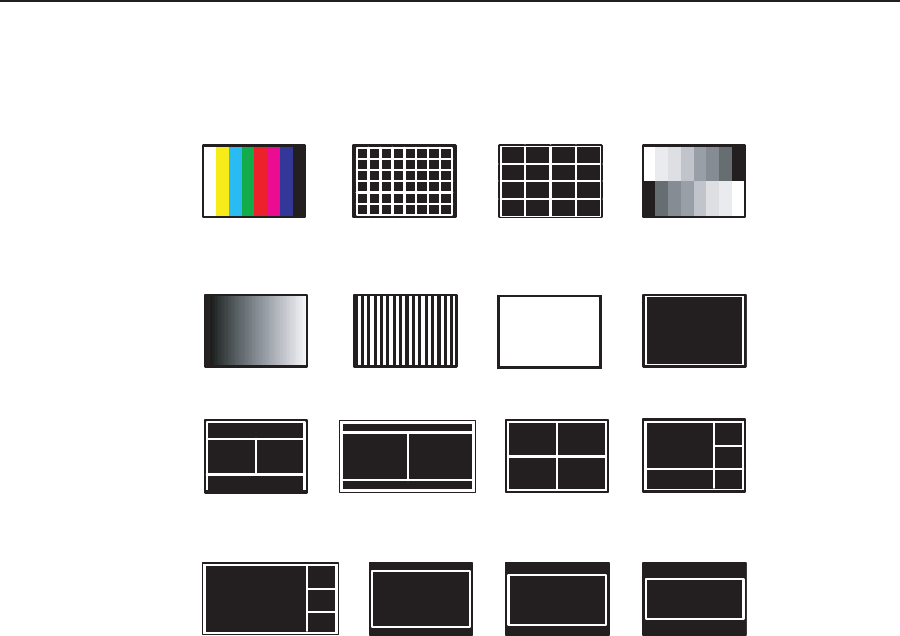

Test pattern — You can select one of the test patterns shown below to adjust the
display for color, convergence, focus, resolution, contrast, grayscale, and
aspect ratio.
4x34x3
16
x
x9
16x9
Colorbars (8) X-Hatch
(16x12)
4x4 X-Hatch Grey Scale
Ramp Alt. Pixels Crop
Side-By-Side
(4x3 crop)
1.78 Aspect 1.85 Aspect 2.35 Aspect
Side-By-Side
(16x9 crop)
MGP 464 Test Patterns
White Field
Quad Split
4x3
4x3
4x3
4x3
PIP Images
(4x3)
16x9
4x3
4x3
4x3
PIP Images
(16x9)
Test patterns available on the MGP 464
Enabling/disabling blue mode
In the Blue Screen Mode section, select the Off or On radio button to disable or
enable blue mode. When you enable blue mode, only the sync and blue video
signals are passed to the display. This helps in setting up the color and tint.
