MGP 464 • Operation
PRELIMINARY
Default presets

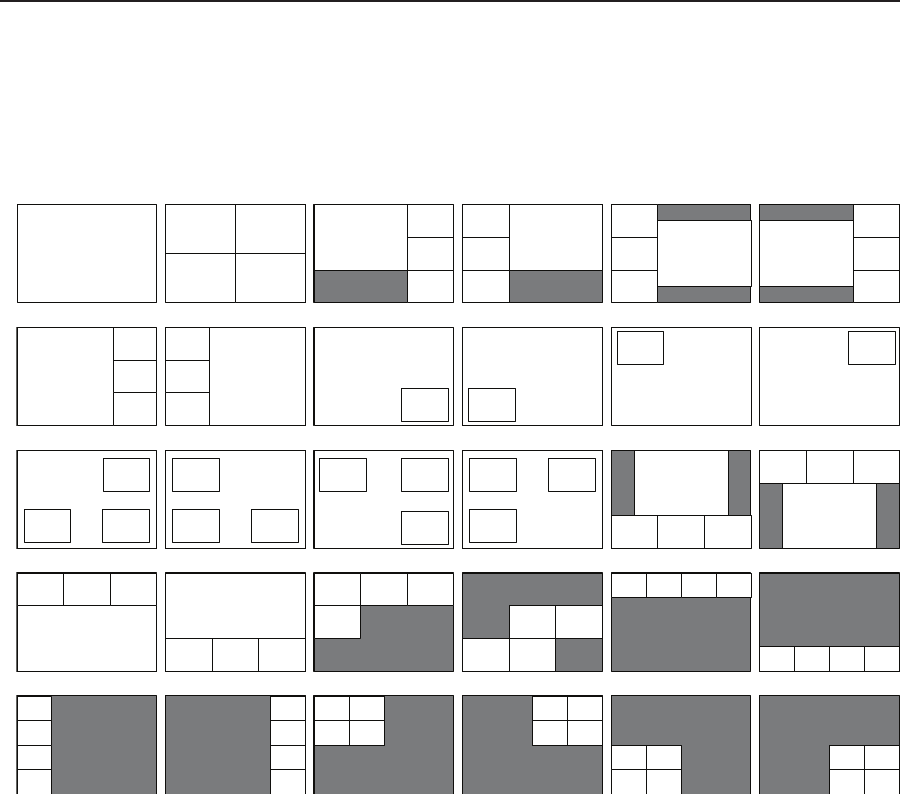

The following figure shows the factory default preset window configurations.
These presets can be used for any output rate. If you overwrite them, you can
recover them by selecting Factory Defaults from the Advanced Configuration
menu. (See “Advanced Conguration menu,” earlier in this chapter.)
2 1
3 4
1
4
3
2
1
4
3
2
3
4
2
1
3 4
1
2
4
3 1
2
1
2
1
3 4 2
1
2
1
4
3
2
1
2
1 2
2
3 4
1
4
3
1 2
1
3 4 2
1
3 4 2
1
3 4 2
1
4
3
2
1
4
3
2
2 3 1
4 2
3
1
4
2 3 1 4
2 3 1 4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
1 , 2 , 3 , 4
All Fullscreen
Preset #1
Preset #7
Preset #2 Preset #3 Preset #4 Preset #5 Preset #6
Preset #8 Preset #9 Preset #10Preset #11Preset #12
Preset #13Preset #14Preset #15Preset #16Preset #17Preset #18
Preset #19Preset #20Preset #21Preset #22Preset #23Preset #24
Preset #25Preset #26Preset #27Preset #28Preset #29Preset #30
Factory default preset configurations
Input presets
The MGP 464 has 128 input preset slots, which can save signal type, input
configuration settings, picture control settings, and window text for any of the
inputs. These presets can be saved and recalled using the Windows-based control
software, SIS commands, or the MGP 464 Web pages (see chapter 4, “Software
Conguration and Control,” and chapter 5, “HTML Conguration and Control,”
for further information).
The following settings are contained in the input presets:
Input Type Horizontal Start Total Pixels
Input Name Vertical Start Active Pixels
Film Mode On/Off Pixel Phase Active Lines
Brightness Contrast Color
Tint Detail (sharpness) Percentage of window filled*
*Image size and position are saved as a percent of the window, so that the input
preset can be used for any size window.
