B-9
MGP 464 • Firmware Upgrade Guide
PRELIMINARY

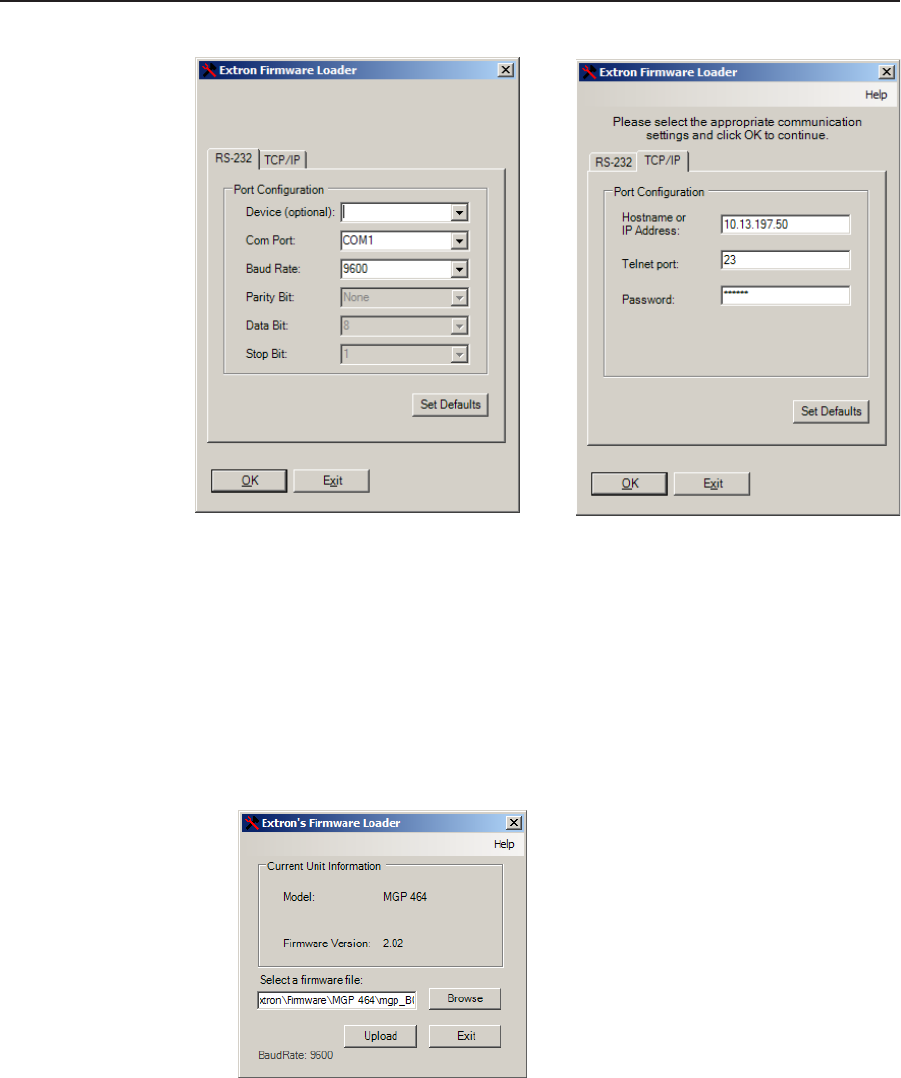

Firmware Loader connection tabs
• RS-232 tab — From the drop-down menus, select the appropriate COM
port number (obtained from your system administrator) and baud rate
(the default is 9600).
• TCP/IP tab — Enter your MGP’s IP address (obtained from your system
administrator), Telnet port (the default is 23), and, if required, password.
6. In the Select a firmware file field on the next screen, enter the path to the
new MGP rmware le on your computer, or click Browse to locate and open
it. (By default, the rmware le is placed at c:\Extron\Firmware\MGP464
when downloaded from the Extron Web site.)
Firmware Loader file selection screen
7. Click Upload. Messages appear on the firmware file selection window
indicating when the unit is uploading the firmware, then resetting itself.
When the rmware upload process is completed, the message “Transfer
Complete!” is displayed, and the new rmware version number appears in
the Current Unit Information eld.
8. Click Exit to close the Firmware Loader.
