Firmware Upgrade Guide, cont’d
MGP 464 • Firmware Upgrade Guide
B-6
PRELIMINARY

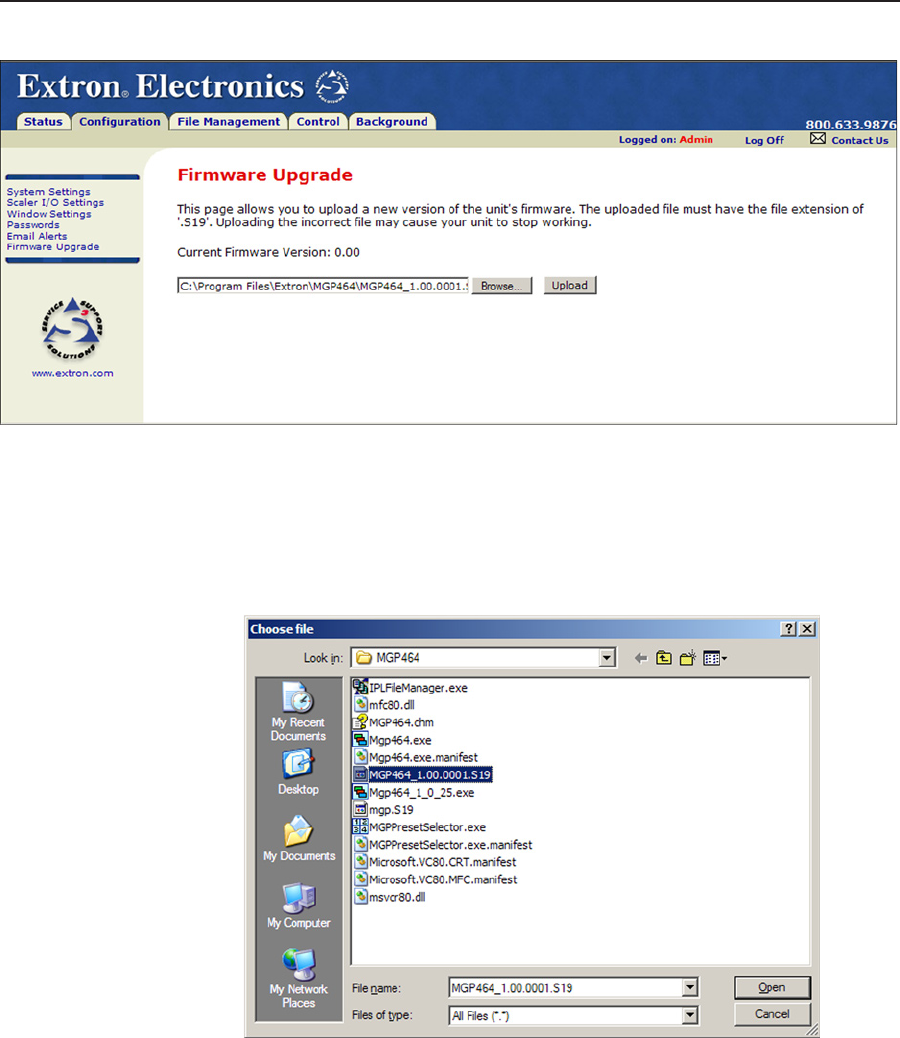

Firmware Upgrade screen
4. Click Browse to open the Choose file window, and locate the firmware file on
your computer or server. The file extension must be .S19.
C
Uploading a file with an incorrect extension may cause the unit to stop
working.
Choose file window with firmware file selected
5. Open the firmware file. Its name appears in the field below the Current
Firmware Version on the Firmware Upgrade screen.
