HTML Conguration and Control, cont’d
MGP 464 • HTML Conguration and Control
5-20
PRELIMINARY

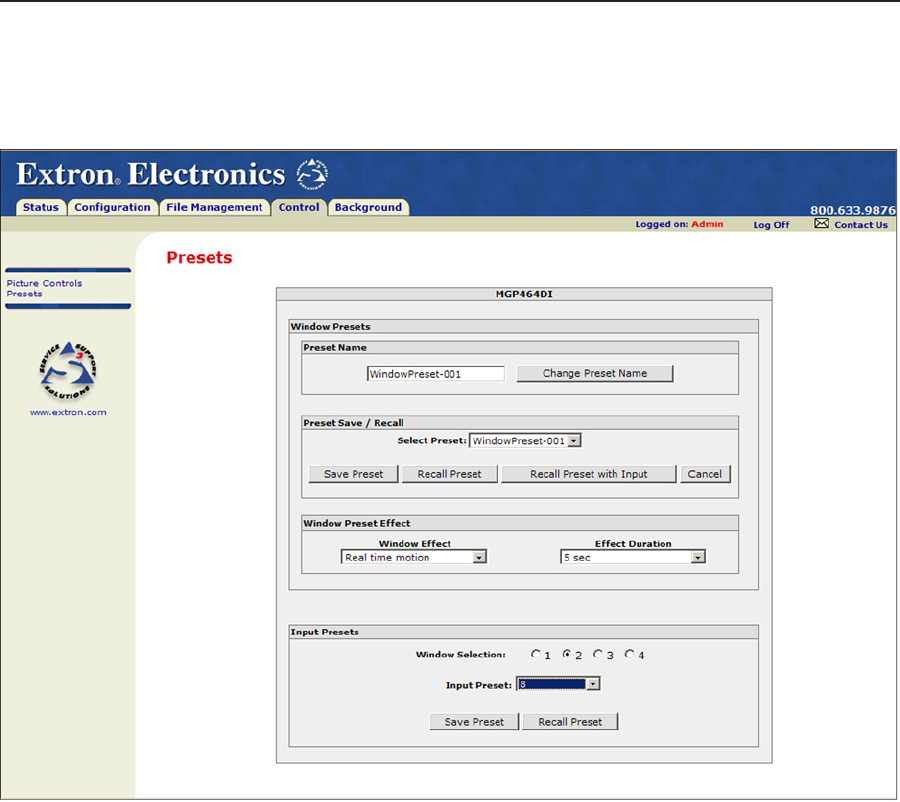

Presets screen
On the Presets screen, you can name, save and recall window presets; and save and
recall input presets.
Presets screen
Window Presets
A window preset is a file containing all the settings that have been specified for the
windows. The MGP 464 has 128 preset memory locations, in which it can store up
to 128 window presets. Presets save information for all four windows.
The following settings can be saved in a window preset:
Window border color
Window priority
Window mute status
Label text color
Label text size
Label location
Label border color
Label background color
Window background setting
Window size/position
Image size/position in the window
