HTML Conguration and Control, cont’d
MGP 464 • HTML Conguration and Control
5-16
PRELIMINARY
Using the Control Page
The screens that you can access through the Control page enable you to configure
the windows and images, select inputs, and manage window and input presets.
Picture Controls screen
The Picture Controls screen allows you to congure and control the MGP 464
windows and the images within them. You can also select the input for each
window.

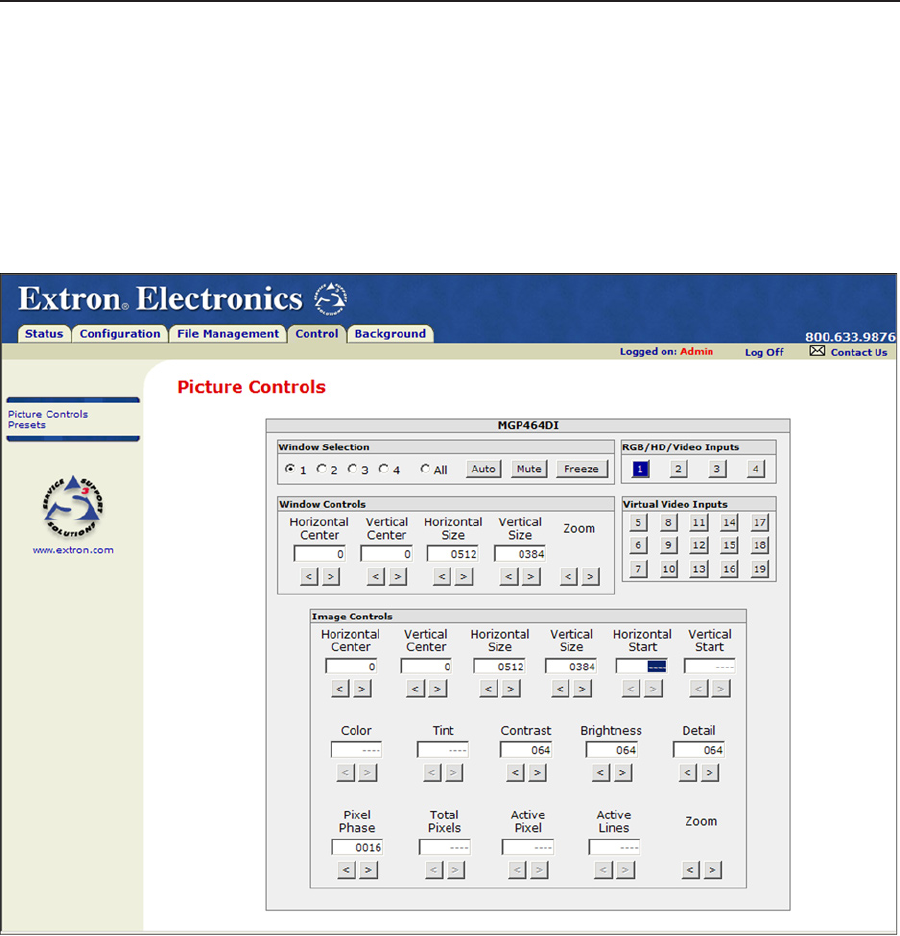

Picture Controls screen
The Picture Controls screen contains the following sections:
Window Selection
This section contains the following buttons:
Window radio buttons — Select one of the radio buttons to specify the window(s)
to which the other selections on this screen will apply.
N
The All radio button cannot be used to make adjustments in the Window
Controls and the Image Controls section. These selections must be made for one
window at a time.
