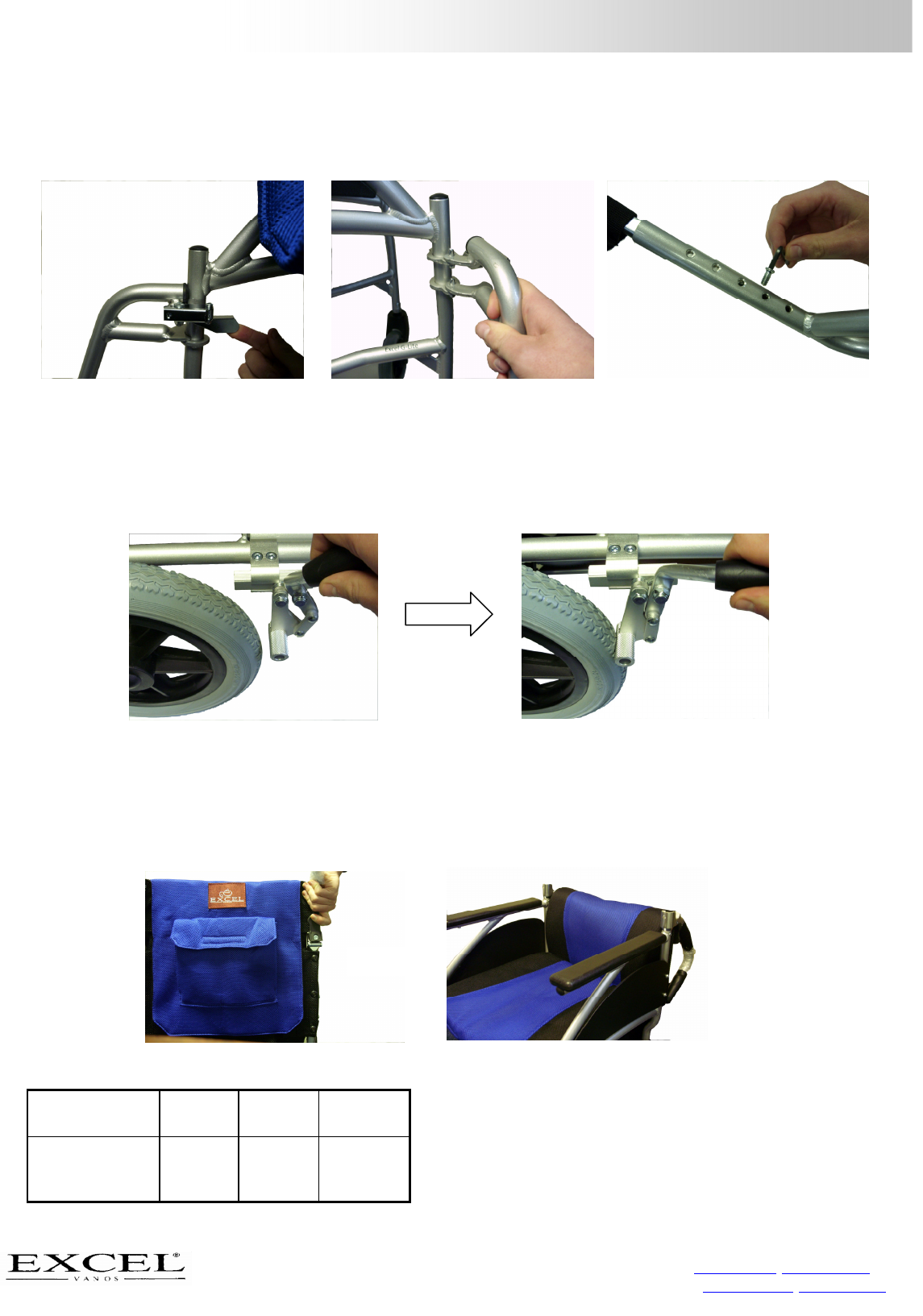

Setting height of the footplate
For adjusting the height of the footplate you need to use an allen key.
- Loosen the bolt on the footrest completely, see figure 7;
- You can now remove the footplate or adjust the height;
- When you wanted to adjust the height, please select the desired height now and tighten the bolt down;
- Make sure the footplate is in place and that the length is equal on both sides.
5.4 Using the wheelchair brake
Putting the wheelchair brake on
- Go to the back of the wheelchair;
- Push the black lever (figure 8) down until you hear a click which will confirm that the brake is on
5.5 Potential uses and functions of the back of the wheelchair
Using the foldable backrest
- Go to the back of the wheelchair;
- Press at the same time both levers on the back of the wheelchair and fold the backrest down, see figure 9 and
10;
5.6 Tire table
Wheelchair model
Rear
wheel
Tire size
front
Tire size
rear
EXCEL® ‘G-Lite’
Transit
5" X 1 1/4"
7
½
" x 1 1/4"
Figure 7
Figure 5
Figure 6
Figure 8
Figure 9
Figure 10
