Specifications

33
L510010-04
ENGINE MAINTENANCE - 11
CHECKING COOLANT LEVEL
WARNING
Do not remove cooling system fi ller cap when
the engine is hot. Allow the engine to cool and
then remove the pressure cap slowly, allowing the
pressure to vent. Hot coolant, under pressure, may
discharge violently and cause severe burns.
Coolant Recovery Reservoir
The “see-through” plastic reservoir is connected to the
heat exchanger by a small hose. The recovery bottle
collects coolant that expands with rising temperature,
and would otherwise overfl ow from the system. Coolant
level should be at or slightly above the “ADD” mark on
the bottle when the system is cold. Coolant should be
added ONLY to the reservoir when the system cools.
Add specifi ed coolant as required.
Coolant Filler Neck
Periodically, on a cool engine, remove the pressure
cap from the fi ller neck to ensure the coolant recovery
system is functioning properly. Coolant must be at the
top of the fi ller neck. If coolant is low, check the gasket
in the cap for damage. Replace if necessary. Inspect the
coolant recovery system for leaks.
Degas Bottle
The “see-through” degas bottle is connected to the
heat exchanger by a small hose. The degas bottle
collects coolant that expands with rising temperature,
and would otherwise overfl ow from the system. Coolant
level should be at or slightly above the “ADD” mark on
the bottle when the system is cold. Coolant should be
added ONLY to the bottle when the system cools. Add
specifi ed coolant as required.

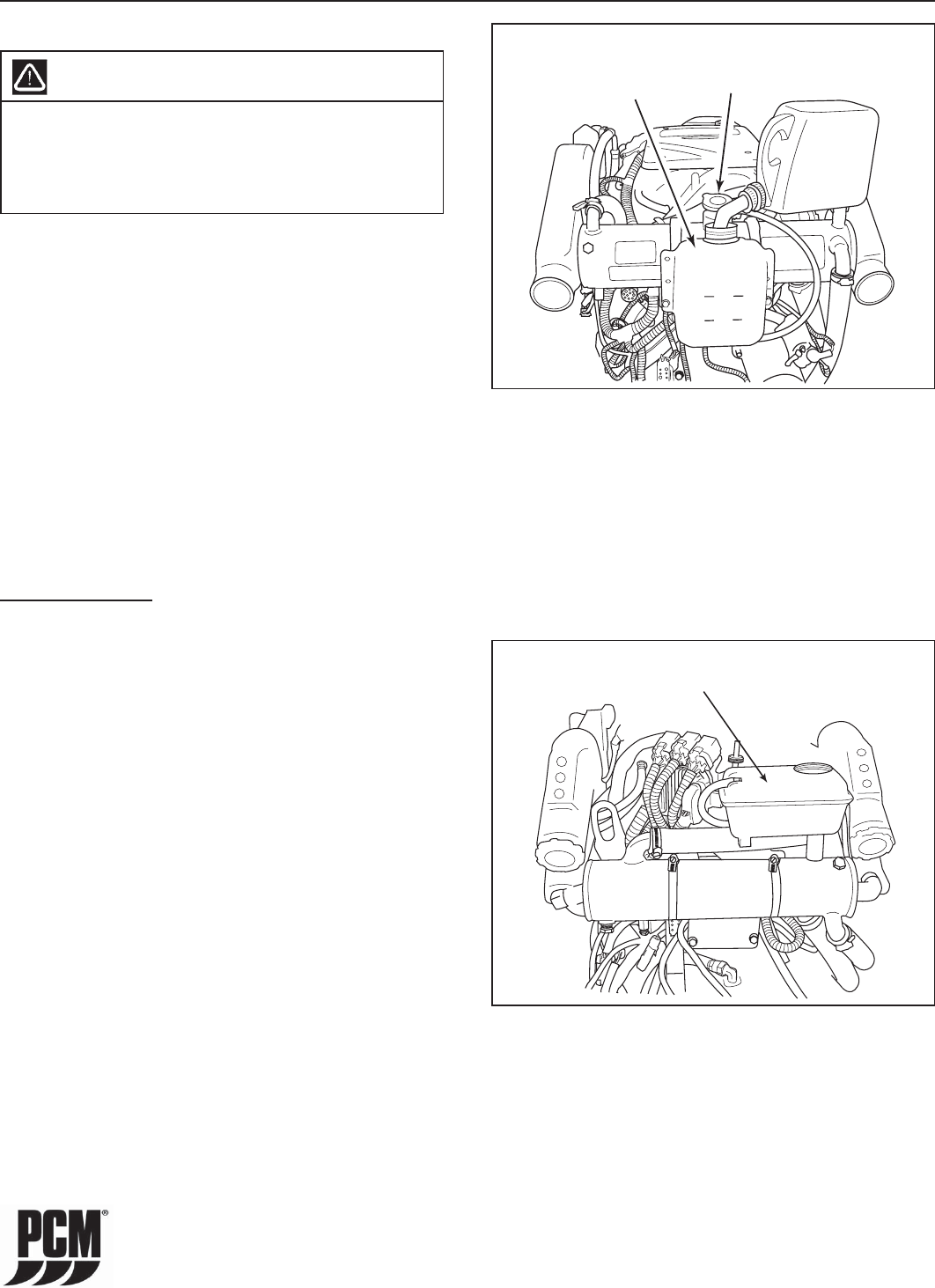

Figure 11-7 Checking Coolant Level (8.1L)
FU
L
L
A
D
D
PRESSURE
CAP
COOLANT
RECOVERY
TANK
Figure 11-8 Checking Coolant Level (6.0L)
DEGAS
BOTTLE
