Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
86 203591-011
2013-02-22
Manual Page
The manual (this document or the version that matches the installed firmware) is available within the
GUI. Adobe Acrobat Reader 5.5 or higher is required (go to www.adobe.com
to download Acrobat
Reader). Click the Manual link to display the manual within the browser window. Once the manual
displays, click the save button on the PDF toolbar to download the manual locally.

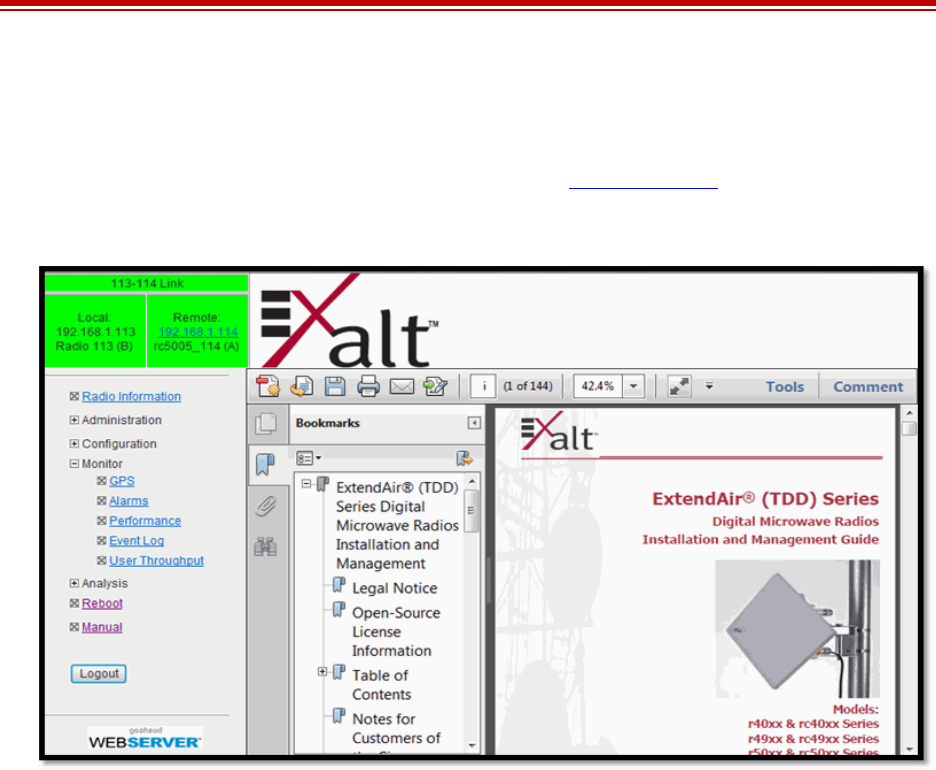

Figure 55 Manual page
