Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
203591-011 77
2013-02-22
User Throughput Page
This page illustrates the user throughput of the radio, as configured. Figure 35 illustrates the
information provided.

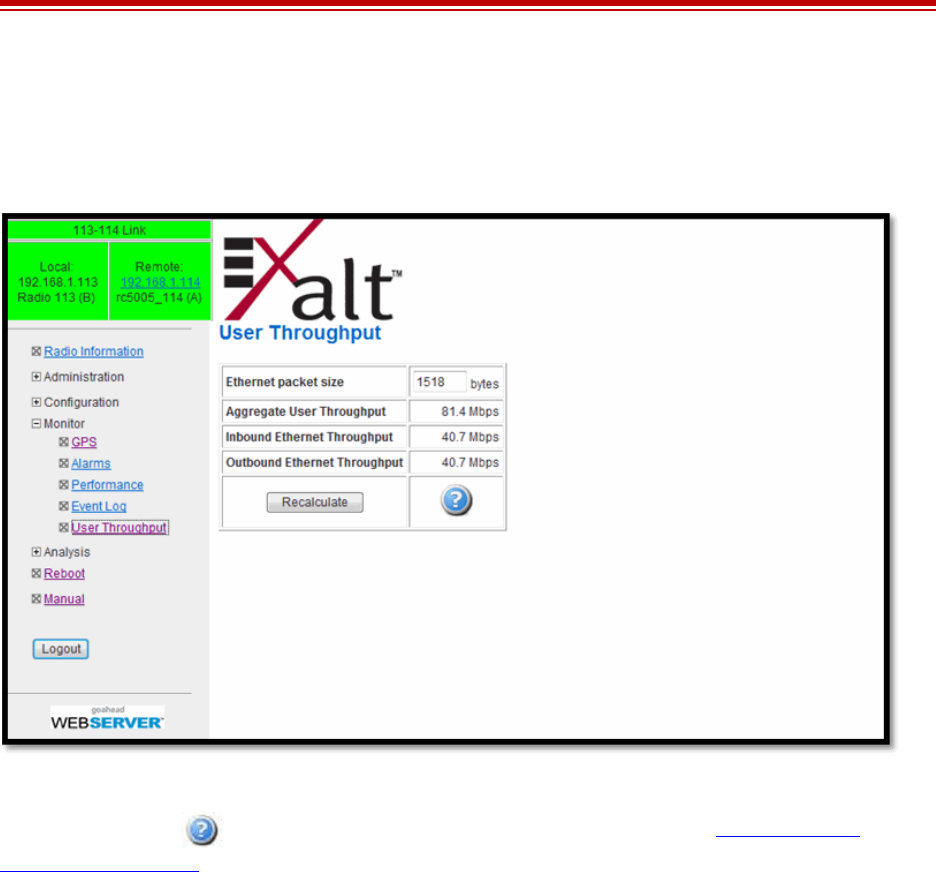

Figure 48 User Throughput page
Click the help icon ( ) to open a page on how this information is determined Aggregate User
Throughput Help page(Figure 49).
