Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
203591-011 67
2013-02-22
• Port (models with multiple Ethernet ports only): Prioritizes traffic based on the Ethernet port
(Figure 41); all traffic connected to the port is assigned to that priority queue.

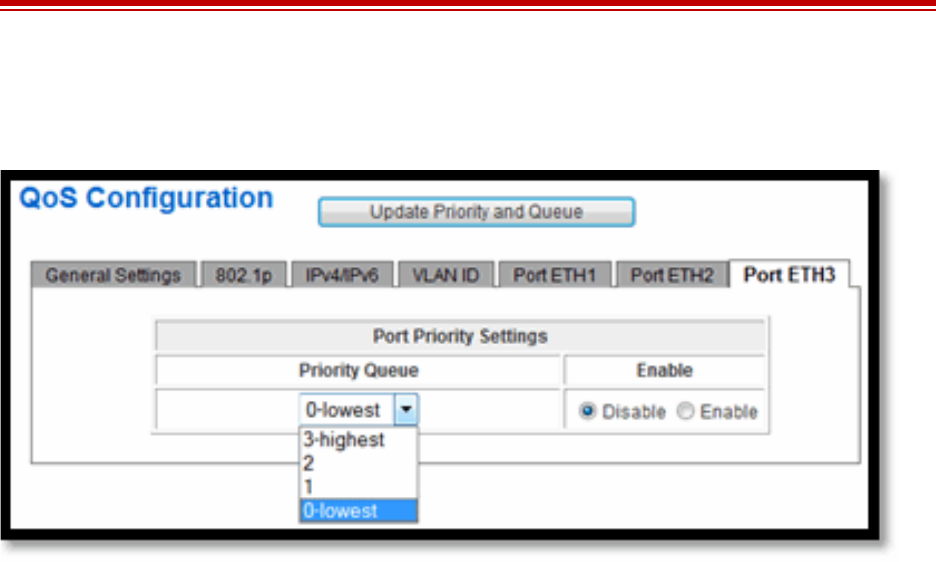

Figure 41 Port based QoS mode
Priority 3 is the highest priority traffic; priority 0 is the lowest. The default priority queue is assigned
to any traffic that does not comply to the selected priorities. For example, if MAC DA or MAC SA is
selected and a packet comes in that does not match any of the up to eight programmed addresses, it is
assigned to the queue selected as default, as are packets that do not have a VLAN ID, 802.1p, or IPv4/
IPv6 tag, or those tags do not match any tags listed (in the case of VLAN).
