Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
66 203591-011
2013-02-22

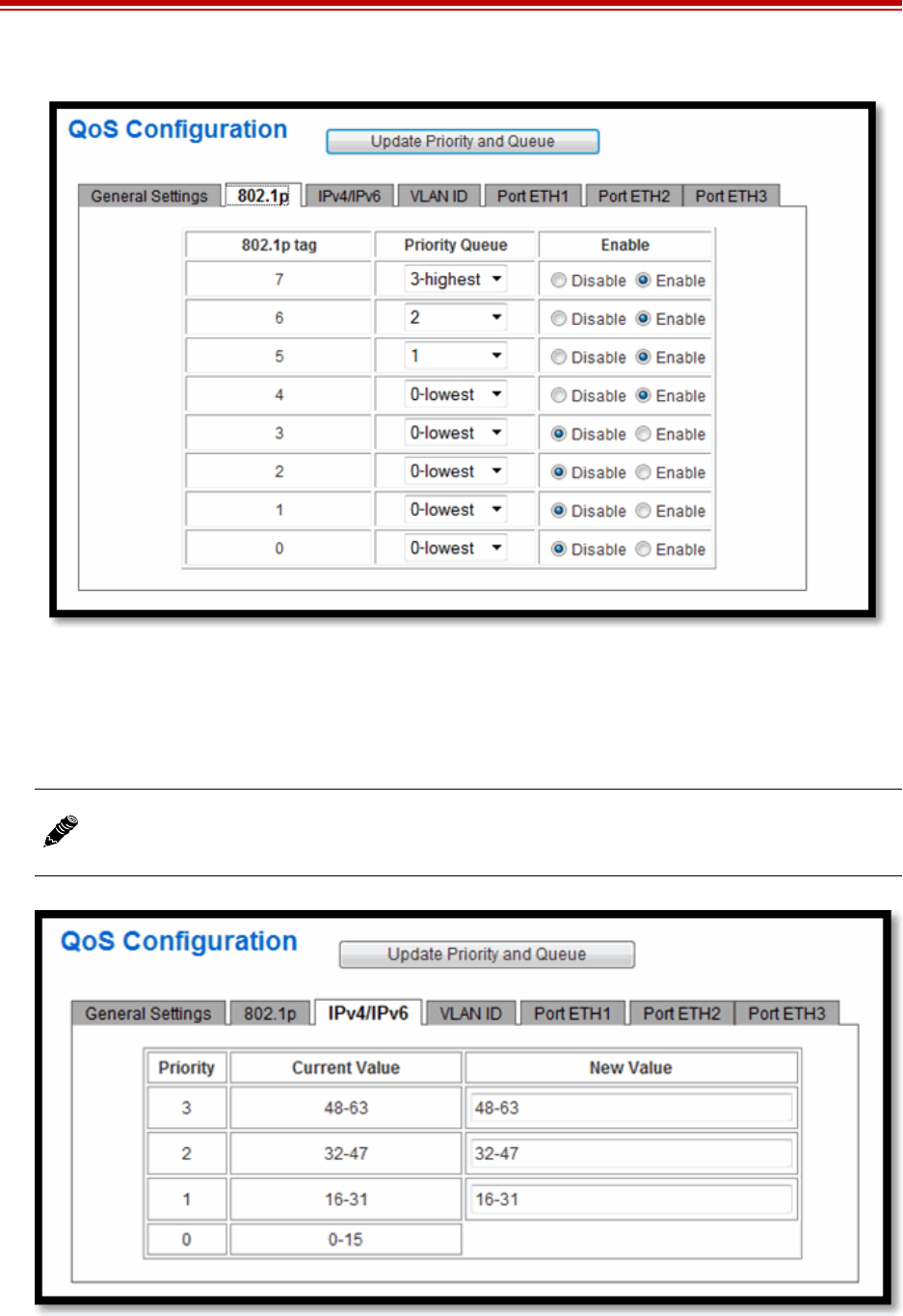

Figure 39 802.1p based QoS mode
• IPv4/IPv6: Prioritizes traffic based on the IP tag in the packet header.
IPv4/IPv6 based QoS supports the tag range 0–63 (Figure 40), each tag can be assigned to the
priority queues (0–3).
Figure 40 IPv4/IPv6 based QoS
For radios with multiple Ethernet ports, different QoS modes can be set for each port.
However, if more than one port is assigned the same VLAN ID, 802.1p, or IPv4/IPv6 QoS
mode, those ports share those settings and they cannot be altered within that port.
