Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
64 203591-011
2013-02-22

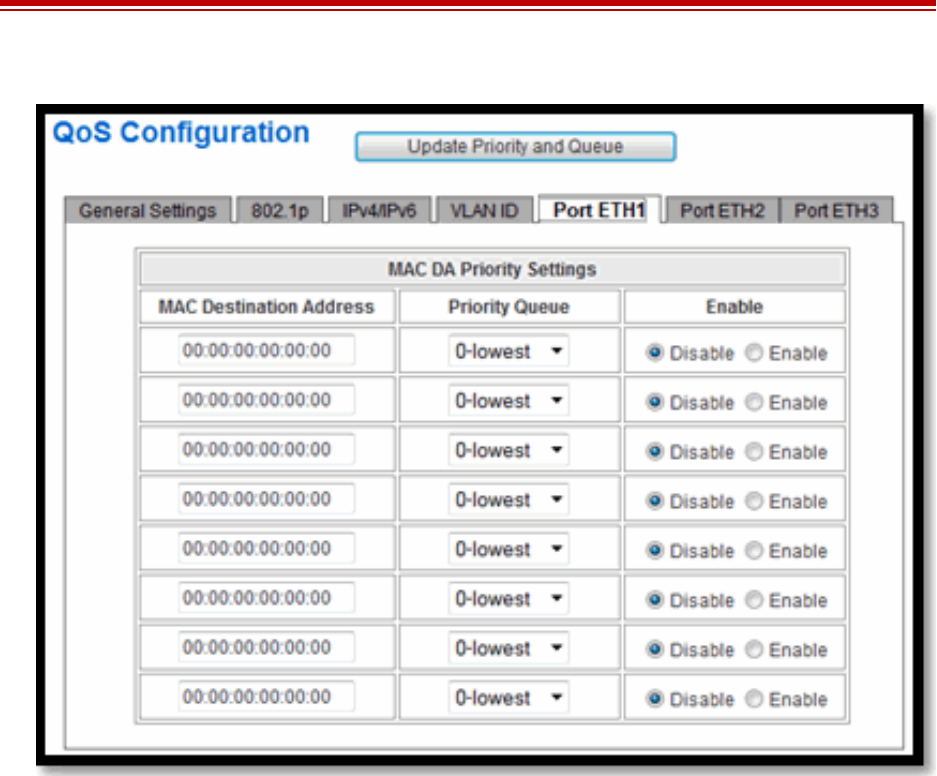

Figure 37 MAC DA based QoS
Up to 8 MAC destination addresses can be programmed per port for priority queuing, as shown in
Figure 37.
• MAC SA (Media Access Control Source Address): As with MAC DA, prioritizes traffic based on
the MAC source address (sender of the traffic) in the packet header. Up to 8 MAC source
addresses can be programmed per port for priority queuing.
• VLAN ID (Virtual Local Area Network Identifier): Prioritizes traffic based on the VLAN ID tag in
the packet header.
