Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
58 203591-011
2013-02-22

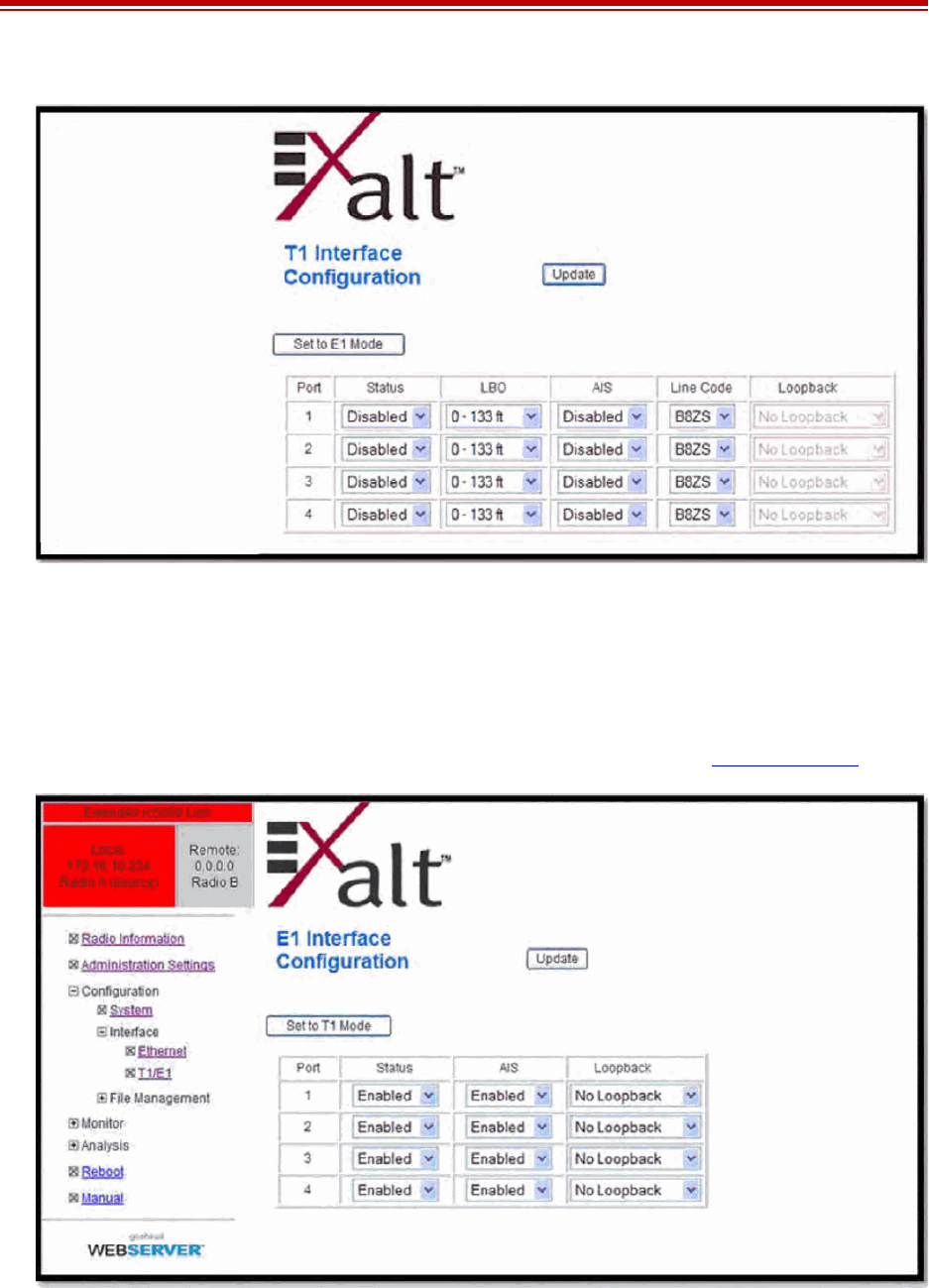

Figure 29 T1 Interface Configuration page
E1 Interface Configuration Page
This page allows the administrator to enable/disable each individual E1 channel. The AIS can also be
enabled and disabled for each input. If enabled, the radio places an AIS code on the output of the
associated interface if and when the link fails or when there is no E1 signal available from the far end
to provide the user at the local end. Loopback controls are also provided (see T1/E1 Loopback
).
Figure 30 E1 Interface Configuration page
