File Management Pages
File Transfer Page
This page allows the administrator to upload and download files to and from the radio. Two types of
files can be uploaded: configuration and radio firmware.
When uploading Configuration Files,
current configuration parameters are immediately overwritten, and the unit
automatically reboots. When uploading radio firmware files, the file is placed into reserve memory
space. After the new radio firmware file uploads, use the File Activation page to enable the files (see
File Activation Page
).

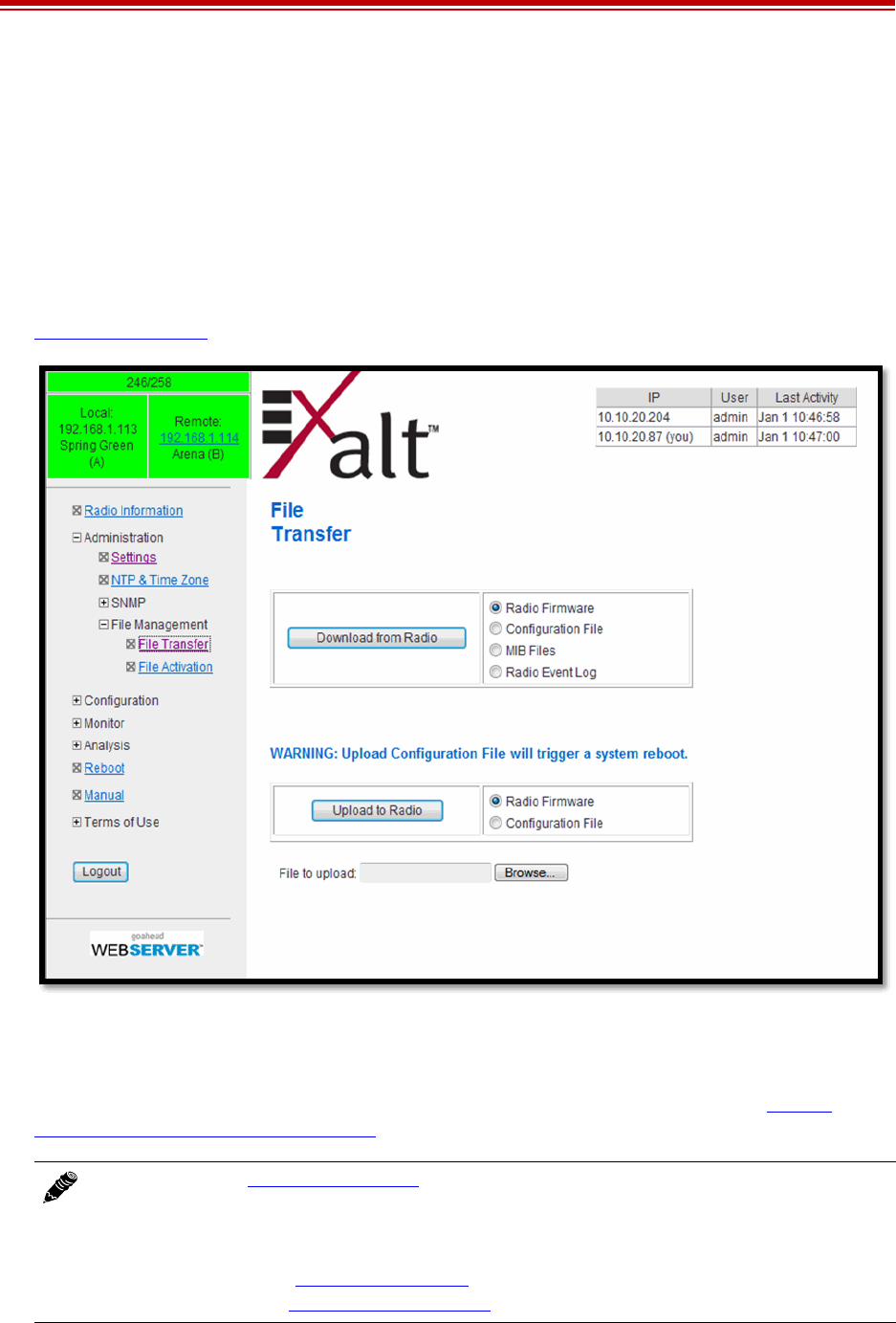

Figure 24 File Transfer page
Up to four types of files can be downloaded: configuration, radio firmware, radio event log, and MIB.
The MIB file refers to the Management Information Base related to the Simple Network Management
Protocol (SNMP) function, and is only available on models which support SNMP. See Simple
Network Management Protocol (SNMP) for more information.
Use the following steps to download a file.
Note: Check the File Activation Page before uploading radio firmware files. New file uploads
overwrite the secondary file location. If important files reside in the primary or secondary file
location, download them before uploading the new files. Only the active radio firmware file
can be downloaded. Therefore, to download the reserve file, it must first be activated (using
the Swap button). See File Activation Page
. The current radio firmware and RDD versions
can be viewed on the Radio Information Page
.
