Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
36 203591-011
2013-02-22
Navigating the GUI describes each page of the GUI. Most configuration parameter settings are
intuitive. The following link parameters must match at both ends for the link to communicate:
• Link Security Key (Administration Settings Page)
• Bandwidth (System Configuration Page)
• RF Frequency (System Configuration page)
• Link Distance (System Configuration page)
• TDD Frame Size (System Configuration page)
Navigating the GUI
The GUI provides the primary interface for all configuration and management. There are three sections
of the main GUI window:
• Summary status information section (upper-left corner)
• Navigation panel
• Main window

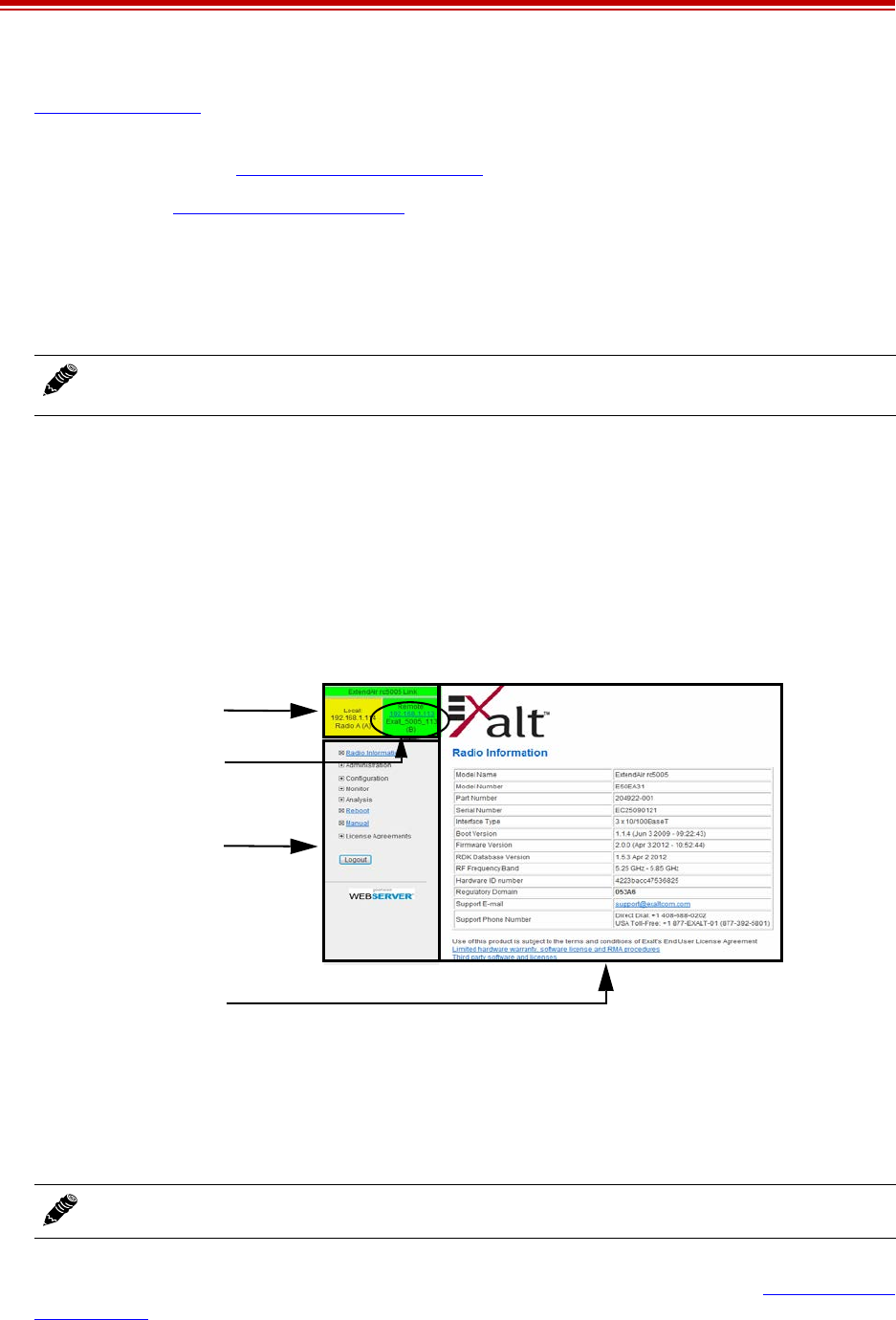

Figure 17 Exalt GUI window description
Summary Status Section
This section of the Exalt GUI provides a review of the system status.
In the screens in Figure 17, the top bar illustrates the alarm condition of the link. The information
inside the bar is equivalent to the entry of the Link Name set by the administrator in the Administration
Settings Page.
The color of the panel indicates alarm status:
Note: Changing any of these parameters causes a temporary loss of link. The GUI displays a
warning and provides an opportunity to cancel changes.
Click the radio IP address link to access that radio for management.
SUMMARY STATUS
NAVIGATION PANE
MAIN WINDOW
LINK TO
REMOTE RADIO
