Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
14 203591-011
2013-02-22

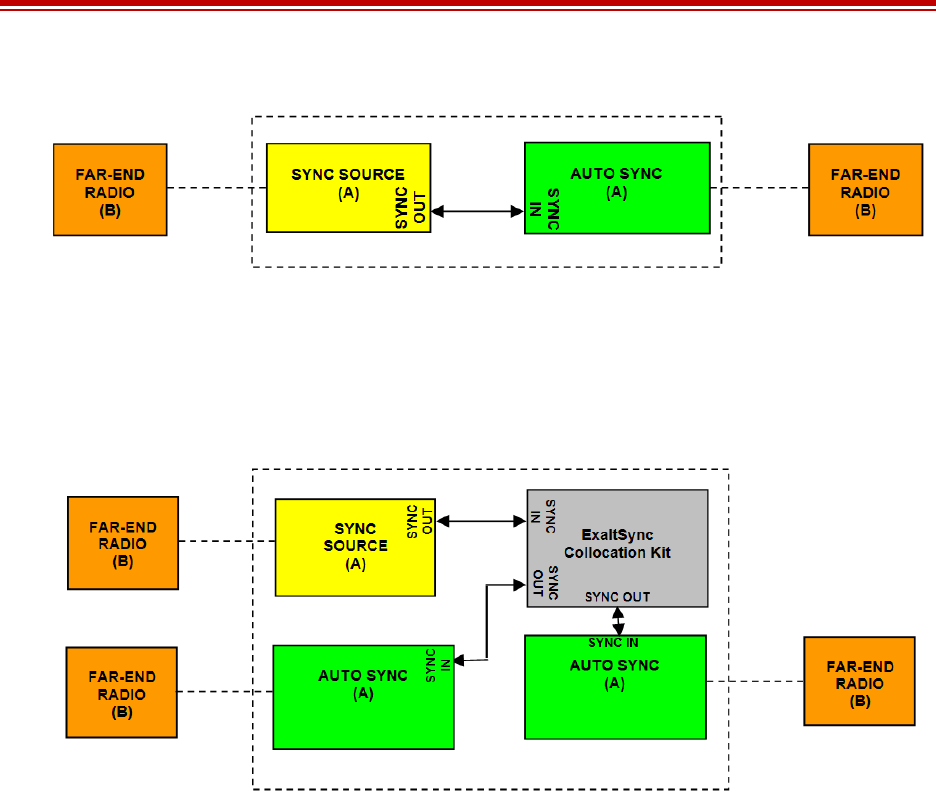

Figure 5 Internal Sync for two collocated radios
When more than two radio links terminate from the same site, use the sync distribution accessory,
ExaltSync Collocation Kit (sold separately) to connect more links to the Internal Sync source, as
shown in Figure 6. Use one kit to connect one Sync Source radio to up to three additional links. Each
additional kit expands up to three additional links.
Figure 6 Internal Sync for more than two collocated radios
This approach can also be used using an Exalt GPS source for synchronization, instead of Internal
Sync, as shown in Figure 7. This approach is recommended if there are other nearby sites that are not
collocated or part of the connected network that need to be synchronized. Using one kit, a single GPS
Antenna can synchronize up to 4 collocated links. This can be expanded 3 additional links per
additional kit.
