Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
203591-011 5
2013-02-22

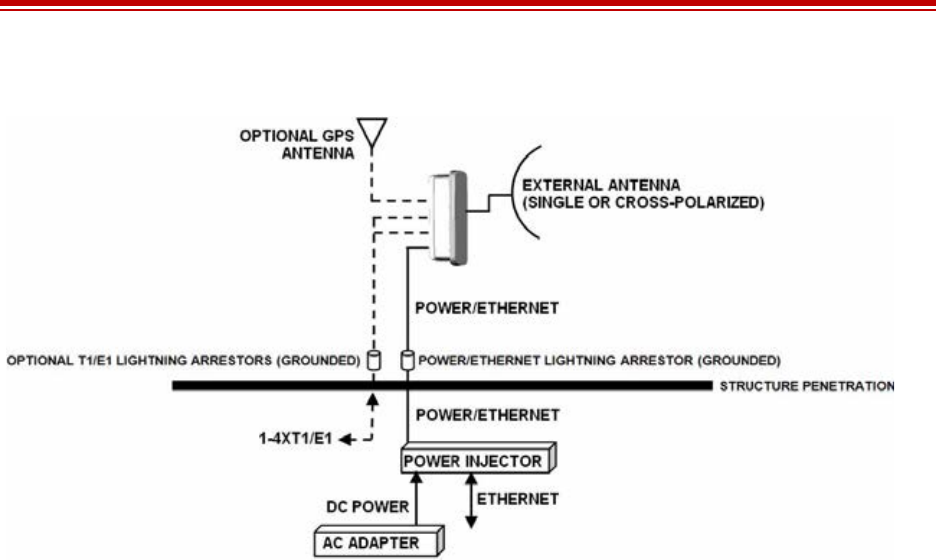

Figure 3 Cabling and mounting—external antenna model
For highest performance and reliability, it is advised to minimize the length of RF cable and associated
transmission system losses between the antenna and the radio’s antenna port.
The ExtendAir (TDD) Series radios provide connections for a combination of the following data
communication interfaces:
• 10/100BaseT Ethernet (up to 3 ports, depending on model)
• Up to 4xT1/E1 interfaces for synchronous voice traffic (xx10 and xx15 models only)
The ExtendAir (TDD) Series radios are powered by a combined Power/Ethernet cable, and associated
power injector. The power injector provides 48VDC to the unit. The power injector and/or external
power supply are sold separately.
The ExtendAir (TDD) Series radios provide the following primary features and benefits:
• Low-latency optimization and control for voice and data connections
• Very high throughput and flexible interface configurations with voice+data combinations
• Encryption for extreme wireless security
• Easy-to-use management and configuration
• Flexible utilized channel bandwidth selection for interference avoidance and frequency
coordination
• Flexible center frequency tuning for interference avoidance and frequency coordination
• Flexible capacity to meet current connection requirements and future growth needs
• Carrier-class reliability and performance
• Connector covers (for weatherproofing unused connectors)
