Exalt Installation and Management Guide
ExtendAir (TDD) Series Digital Microwave Radios
203591-011 1
2013-02-22
Introduction
Exalt Communications, Inc. thanks you for your purchase. Our goal is to build the highest quality,
highest reliability digital microwave radio products. This commitment to quality and reliability
extends to our employees and partners alike. We appreciate any comments on how we can improve our
products, as well as your sales and Customer Care experience.
Related Documentation and Software
This manual makes reference to other documentation and software files that may be necessary. To
access all documents and software mentioned in this manual visit:
http://login.exaltcom.com/
You must have a user account to view all downloads. Follow the online instructions to create a user
account and request access.
The ExtendAir (TDD) Series Digital Microwave Radios
The Exalt ExtendAir (TDD) Series Digital Microwave Radios are the most advanced carrier-class
point-to-point terrestrial radio communications devices operating in the 4400 to 4900, 4940 to 4990,
or 5250 to 5875 MHz bands. The ExtendAir (TDD) Series radios are available in the following
configurations:
• r-models have an integrated antenna.
• rc-models have a connector for external antenna connection
The ExtendAir (TDD) Series radios connect voice and/or digital data from one location to another,
obviating the need for copper or fiber connectivity, or enhancing existing connectivity by providing a
redundancy solution, a primary solution, and/or additional capacity. Figure 1 shows the ExtendAir
(TDD) Series r5000 digital microwave radio.

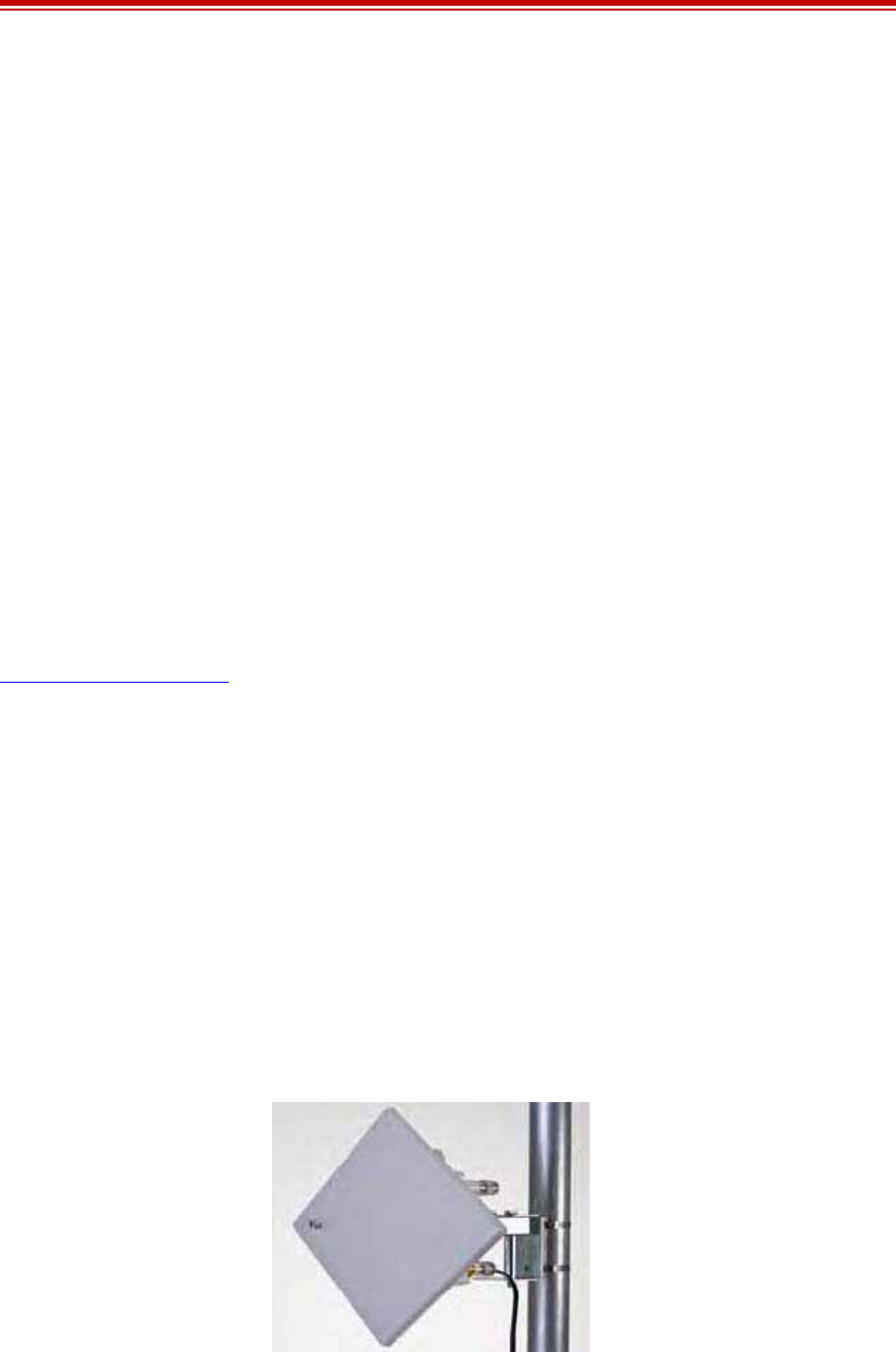

Figure 1 Exalt ExtendAir (TDD) r5000 (integrated antenna model)
Customer Care Hotline (USA): (408) 688-0202
Toll-Free Customer Care Hotline (USA): (877) EXALT-01 (392-5801)
Direct-Dial Telephone (USA): (408) 688-0200
Website: www.exaltcom.com
