XTnano
–
Version 10.04
–
Operating Manual
EVS Broadcast Equipment SA – January 2011
Issue
10.04.A
83
9.14.4 DEFAULT DURATION FOR VIDEO AND AUDIO TRANSITION
This is possible to set a default value for the duration of the video and audio
transitions in the Setup Menu. Once this is defined, each time a clip is entered or
inserted into a playlist, transitions are applied with the default values.
The Vid. Effect duration setting is on page 4.1, function key F1 (range up to
20:00 secs).
The Aud. Effect duration setting is on page 4.1, function key F2. When the split
audio is disabled, the value for this setting is ‘Lock to video’, and the audio effect
duration is the same as the video effect duration.
9.14.5 OVERVIEW OF TRANSITIONS EFFECT TYPES
DEFAULT TRANSITION EFFECT
A default mix transition effect (audio and video) is applied to each new clip
inserted into the playlist. However, you can change the type of transition effect in
the main menu of the Playlist Edit mode. For more information, refer to the section
9.14.6 ‘How to Define a Transition Effect’, on page 84.
POSSIBLE TRANSITION EFFECTS
The following video transition effects can be defined. By default, the audio
transition is always a mix when the split audio mode is disabled.
Effect Type Description
Cut No transition effect is applied between both elements.
Mix Dissolve effect between both elements.
Wipe The last frame of the previous element is gradually replaced the
first frames of the next element.
The wipe effect is shown as a vertical line moving across the
video. The direction of the wipe effect (left to right, right to left)
is defined in the Wipe Type parameter on page 4.1 of the setup
menu.
Fade from
color (<)
A fade out effect from a defined color is applied on the first
frames of the clip (on which the effect is defined). The previous
clip ends in cut mode.

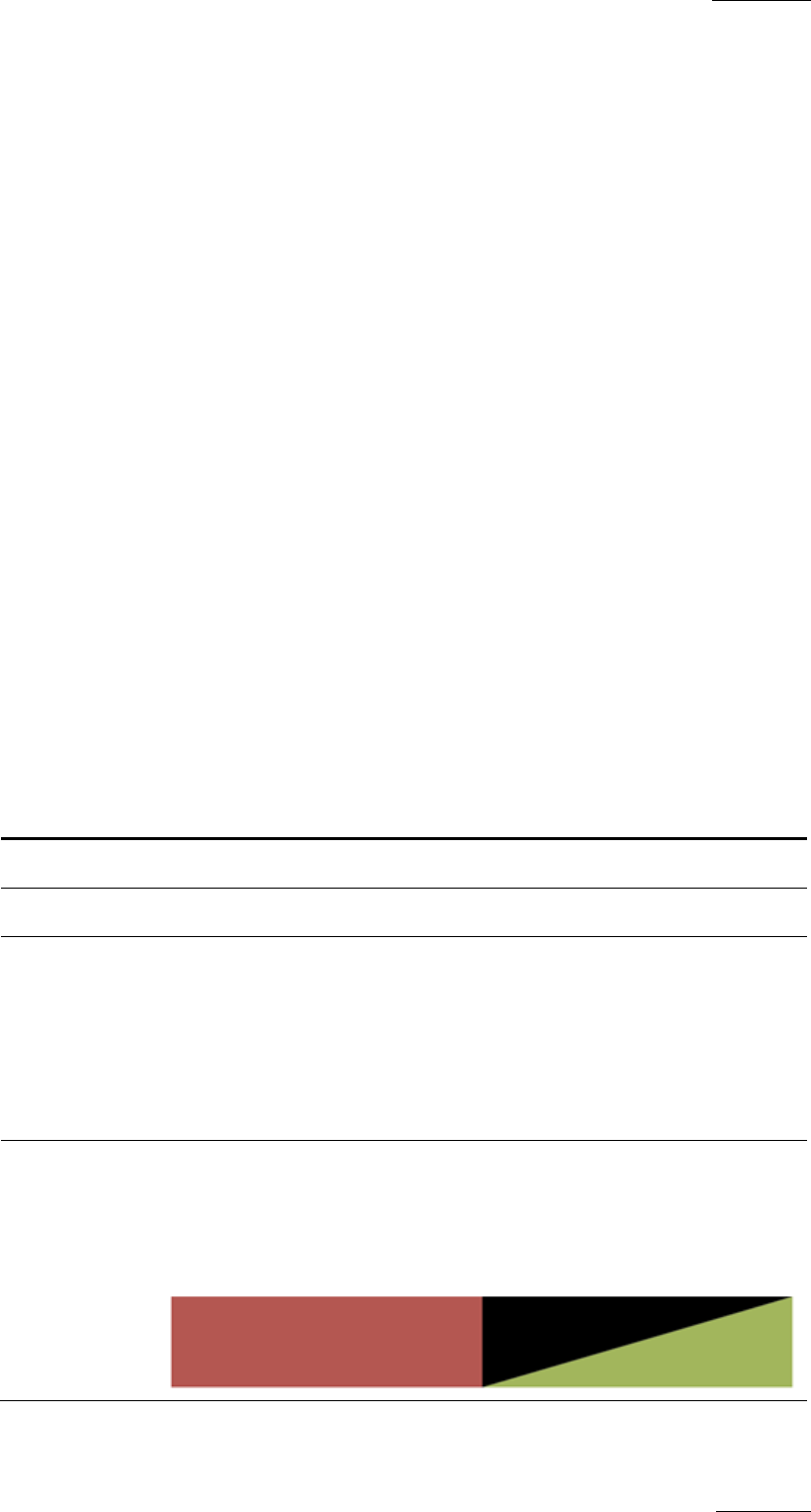

In the drawing below, the previous clip is displayed in red, the
next clip is green, and the fade in black:
