PROCEDURE
To regenerate the timecode in a given playlist, perform the following actions:

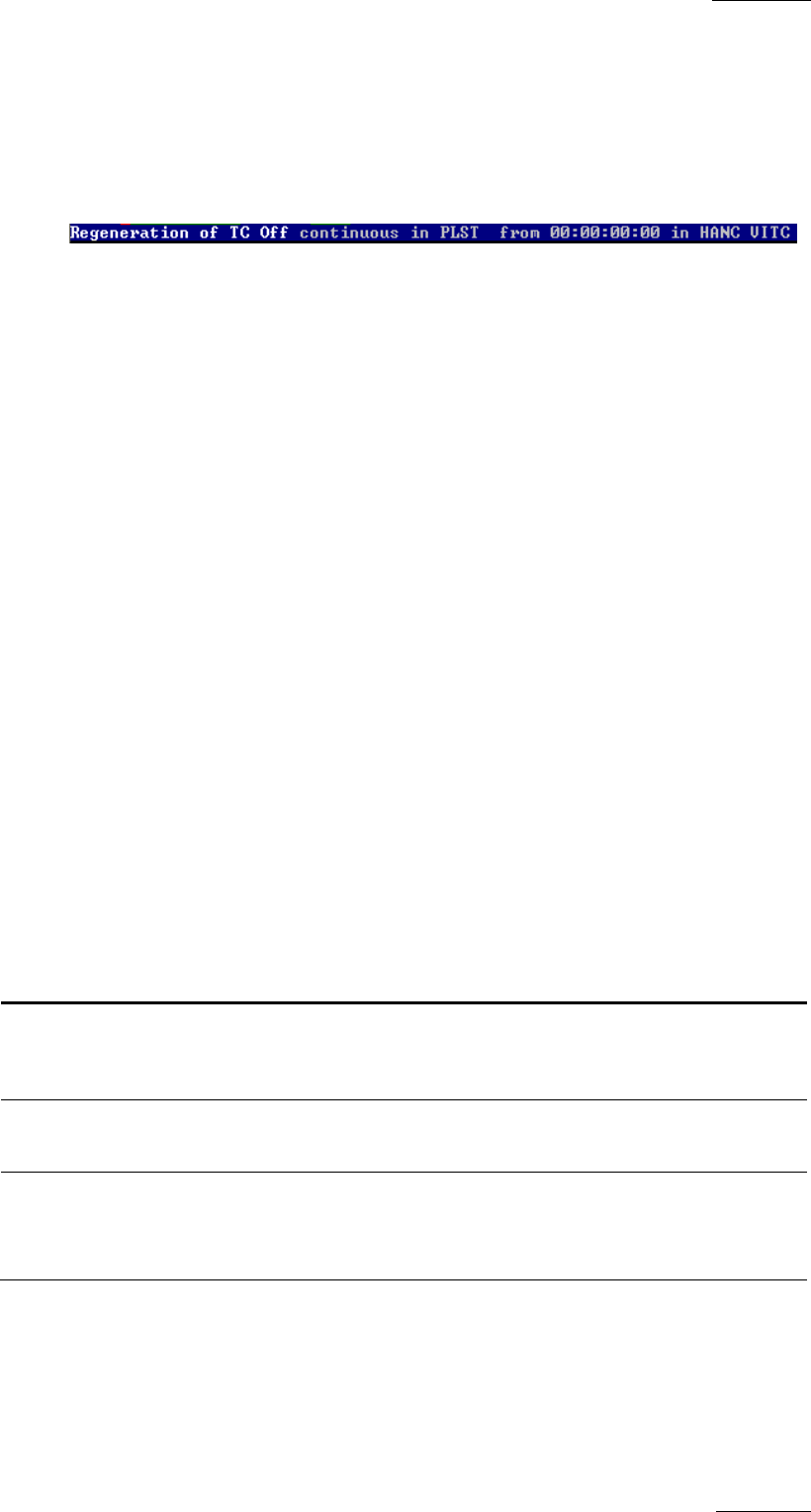

1. Activate the TC Regeneration and define the related settings on the Playlist
page (F10), in the blue-highlighted area at the bottom of the page. This
feature is defined for each playlist individually:
2. Activate the internal loop using the SHIFT + Loop keys
3. Roll the playlist.
This will record the playlist back into the recorder channel 1 (CAM A) with
the regenerated timecode.
HOW TO ACTIVATE THE CONTINUOUS TIMECODE REGENE-
RATION
To activate the continuous timecode regeneration, proceed as follows:
1. In the Playlist page (F10), press the TAB key several times until the ‘OFF’
field after ‘Regeneration of TC’ is green highlighted.
2. Press the right arrow key to toggle the function to ‘ON’.
The continuous timecode regeneration function is now active. However, the
timecode will effectively be regenerated when you replay the playlist after
activating a loop. To deactivate the function, press the left arrow on the field to
toggle the function to ‘OFF’.
SETTINGS FOR CONTINUOUS TIMECODE IN PLAYLISTS
The following table describes the various parameters that should be defined when
regenerating the timecode in a playlist:
Parameter Description Possible Values
Continuous in … Specifies whether the timecode
should be continuous for the whole
playlist or for each playlist element.
PLST, CLIP
From … Specifies the initial TC value to be
used for the timecode regeneration
Timecode, LTC TC,
User TC
In … Specifies the TC type in which the
timecode should be regenerated
LTC or VITC in SD
HANC VITC, HANC
LTC or both
