For each clip and camera angle, the following information is available:
Field Description
Clip ID Unique identifier of the clip on the server. Ex: 111A
The clip ID is followed by the “Creating” message when the
clip is in the process of being created, copied or moved to
this location.
For more information on growing clips, refer to the section
8.2.5 ‘Recall and Playback of Growing clips’, on page 34.
C
lip “rank” Clip rank depending on the channel on which it has been
created :
• Primary (“*” next to the clip ID)
• Secondary (“=” next to the clip ID)
The clip rank information is highlighted in blue if the clip is
protected.
Clip name Name of the clip, either automatically assigned or defined by
the user.
Archive Status
• If the clip ID is blinking green, the clip is flagged for
archiving, but not yet archived.
• If the clip ID is permanently highlighted in green, the
archiving of the clip has been completed.
8.2.16 THE CLIP MANAGEMENT AREA

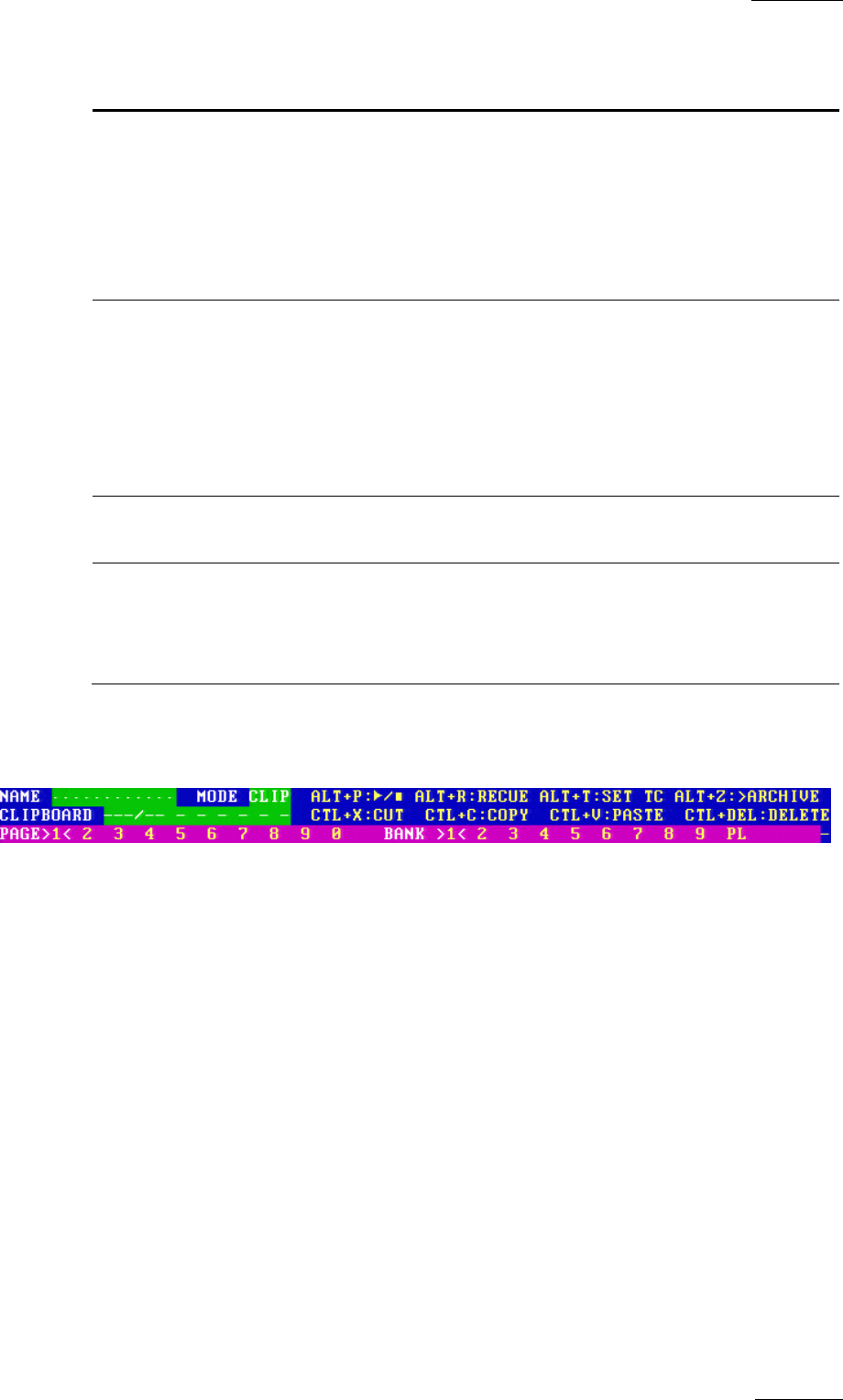

NAME CAPTURE FIELD
This is the only capture area of the screen. It is used to enter the name to assign
to a clip/playlist, or to enter the ID of a clip to recall.
MODE FIELD
Indicates if the clip screen is currently in CLIP or CAM mode. In CLIP mode,
actions on a clip will use all available cameras for this clip. In CAM mode, actions
on a clip will only use the selected camera for this clip. Default value is CAM
mode. The MODE is toggled with the F2 key.
