F2: CLIP/CAM
This function toggles between CLIP mode and CAM mode.
• In CLIP mode, actions on a clip will use all available cameras for this clip.
• In CAM mode, actions on a clip will only use the selected camera for this clip.
Other functions such as Name, Delete, Copy, >Archive depend on this mode
selection.
F3: CALL
The operator can gain immediate access to a local or network clip by typing its ID
number.
F4: PREF
This option changes the primary camera of a clip. For information on how to
change the primary camera of a clip, refer to the section 8.2.20 ‘How to Change
the
Primary Camera of a Clip’, on page 46.
F5: VIEW
This option changes the standard display to the extended display and vice versa.
Refer to the section 8.2.24 ‘Clip Screen – Extended View’, on page 50.
F10:PLST
The Playlist screen can be accessed by selecting F10 on the keyboard.
8.2.15 THE CLIP INFORMATION AREA

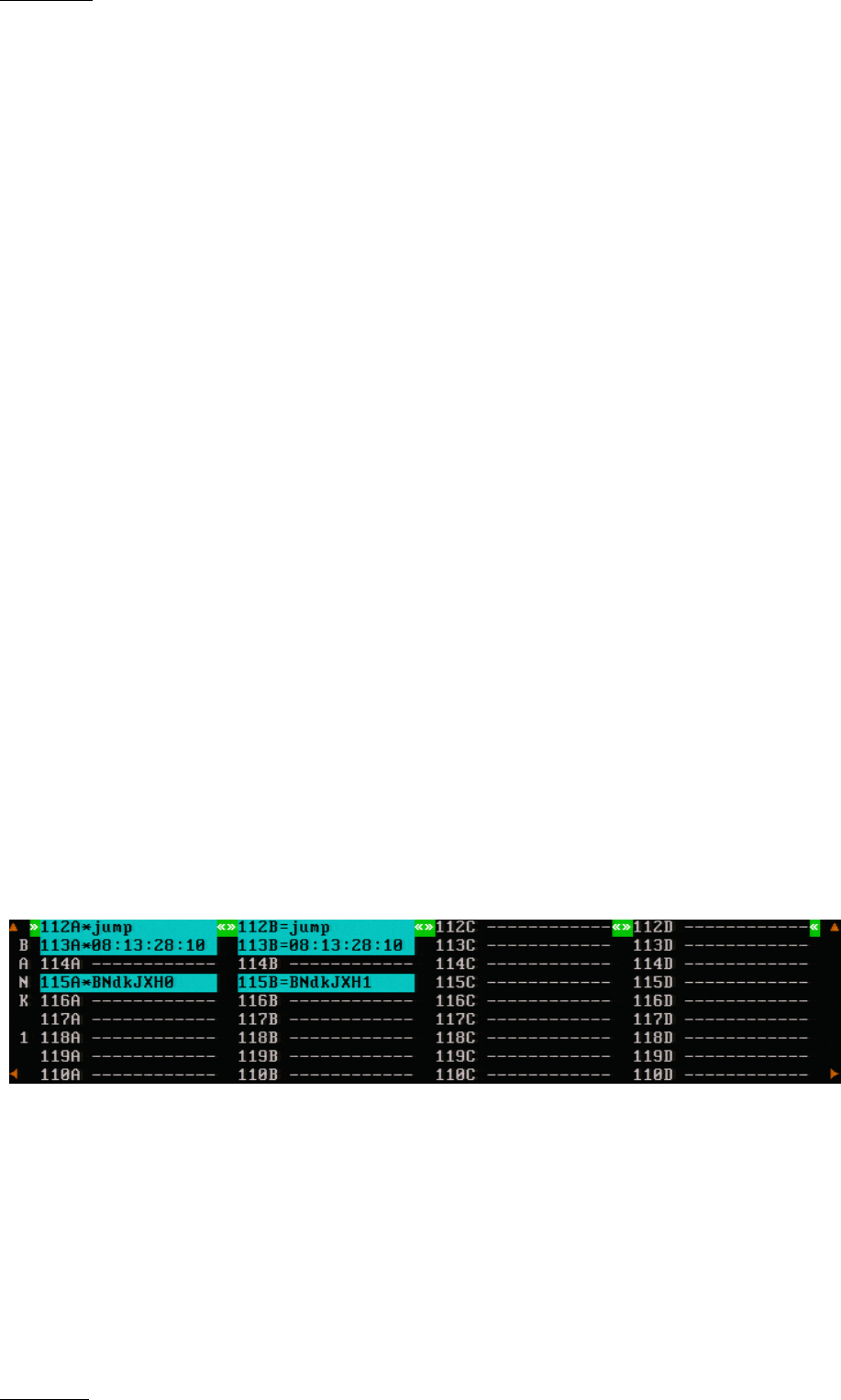

The next area is the Clip Information Area which displays the clips of the selected
page and bank(s). Two clips’ banks are displayed at a time.
