XTnano
–
Version 10.04
–
Operating Manual
EVS Broadcast Equipment SA – January 2011
Issue
10.04.A
33
8.2.3 RECALLING A CLIP
HOW TO RECALL A CLIP
To recall a clip, proceed as follows:
1. Select the Clip page 1, 2, 3… to 10 (Page key).

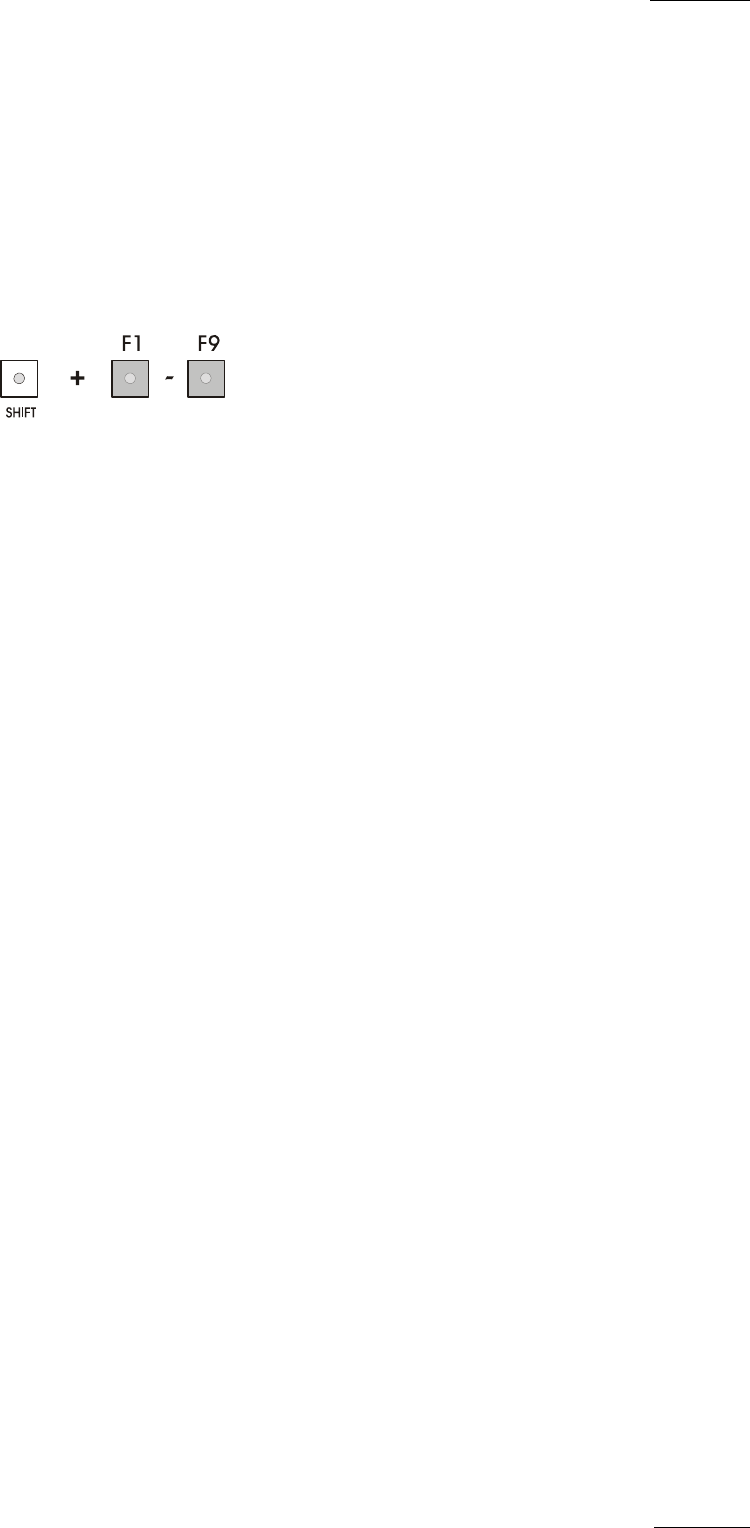

2. Select the bank in which the desired clip is located
3. Select the desired clip via the F1 - F10 keys.
CLIP RECALLED BASED ON THE PREF SETTING
If Pref is ON, the preferred camera angle of the clip will appear on the primary
channel, the secondary camera angle on the next controlled channel.
Example: If the preferred camera angle for clip 124 is camera B, when loading the
clip, 124B is loaded on the primary channel, whatever the camera present on that
channel before loading the clip.
If Pref is OFF, when recalling the clip, the camera angle will be the same as the
one who was already present on each controlled channel. If that camera angle
does not exist, the first available camera angle of the clip will be used.
Example: If camera B is the current camera on the primary channel, when calling
clip 124, it is 124B that appears on the primary channel, even if it is not the
preferred camera angle.
When the operator is controlling only one channel (such as with PrvCtl), the clip
will appear at that location only. In the case of a clip containing a single camera
angle (only an «A», «B» or «C» clip), when in full control of all outputs, the clip
recalled will appear on the primary channel.
TOGGLING BETWEEN THE CAMERA ANGLES
Pressing several times the F_ key will always recall the first frame of the clip, but
showing the next camera angle every time the F_ key is pressed.
