6.2 FULL CONTROL AND LEVER CONTROL
Controlling both PGM and PRV is done when PRV CTL (direct access key from the
remote) is not activated.
Once selecting PRV CTL the operator will have control of the PRV with the jog dial
and most buttons, while the lever and the Play button will control the PGM output.
At this point, selecting clips will call them up on the PRV side.

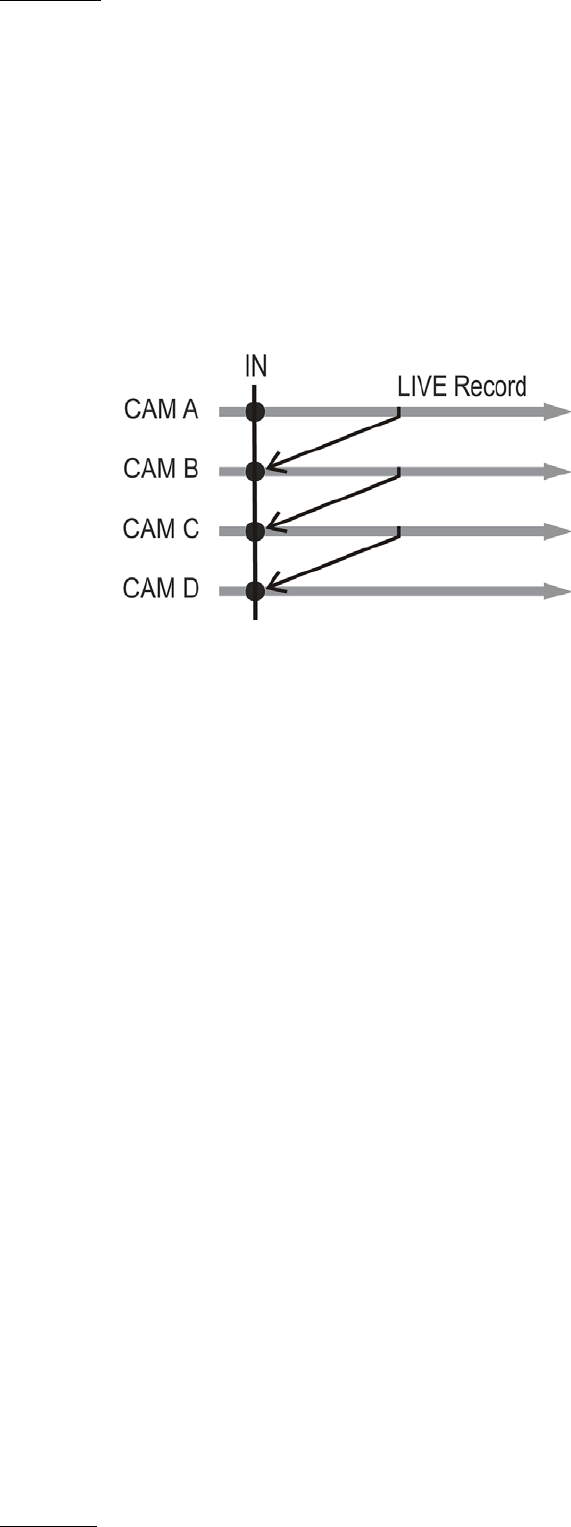

The combination of the PRV CTRL and the SW to IN functions allows the operator
to auto-chain cameras from the same IN point.
When an IN point has been marked, the operator activates the PRV CTL and sets
ON the Sw To In option. Then the slow motion of one camera can be started from
this IN point. The operator selects another camera in the PRV output and, via the
TAKE button, can auto-chain cameras from the same IN point on the PGM output.
