5.4 SYNCHRONIZATION MODE (SWITCH TO
IN)

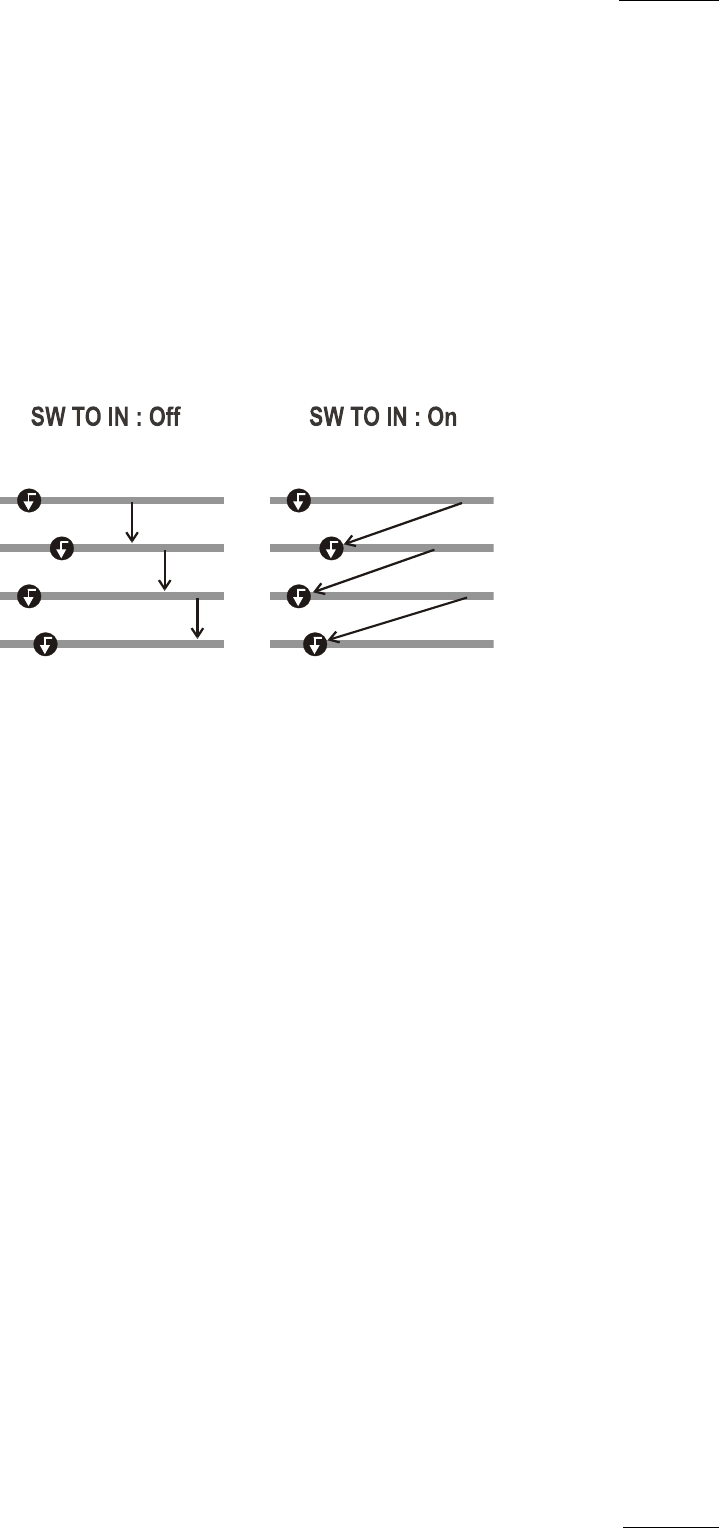

If the synchronization mode is OFF, a request for camera change will produce a
jump at the same timecode on the requested camera. This mode allows
synchronous change of camera angle.
If the synchronization mode is ON, a request for a camera change (by pressing
CAM A, CAM B, or CAM C in the Multicam menu) will lead to a jump to a
predefined CUE IN point.
Cue In1
Clip B
Clip A
Clip C
Clip D
Cue In2
Cue In3
Cue In4
Cue In1
Cue In2
Cue In3
Cue In4
If a CUE IN point has not been previously defined, Multicam acts as in Sw to In
OFF mode (even if Sw to In ON is shown) because the system has no reference to
jump to.
